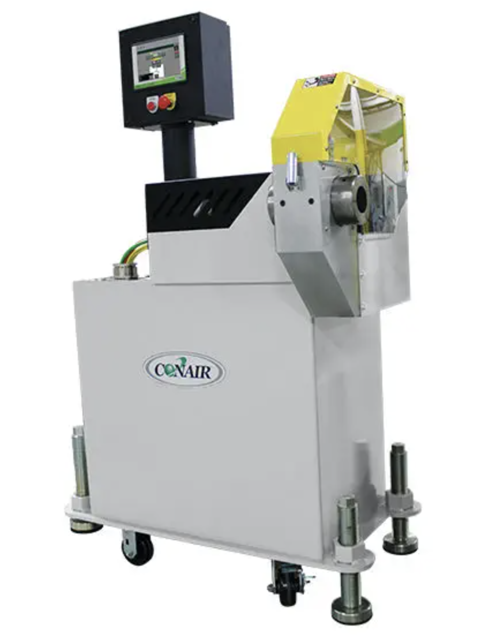

Conair Combination Puller/Cutter CSC2

Is there any sign of cracks, tears, or other damage on the belts?

Replace damaged belts if necessary

Is the cutter power locked out and cutter head stopped completely?

Carefully remove the cutter blade

Check that the following are free of paint, grease, oil, and dirt

Clean surfaces with non-petroleum based solvent if necessary

Turn the hand wheel to move the belts up and down

Place the handle on the left threaded rod and turn to move the upper belt up and down

Lift and place the handle on the right threaded rod and turn to move the lower belt up and down

Did you rotate the handle slightly to engage the keyway with the key on the shaft?

Optional Pneumatic Upper Belt Actuator

Is the Pneumatic Upper Belt Actuator being used?

Refer to Appendix E for more information if needed

Turn the main power disconnect to the off position

Remove the upper and lower belt guards

Remove the screws attaching guards to unit (four each: top, bottom, front and rear)

Disconnect the safety cable (upper guard)

Check belt tension using a tension-measuring tool

Ensure belts are tight enough to prevent slipping

Ensure the gap between the upper and lower belts is even across the width

Adjust belt tension, if necessary

Inspecting Electrical Terminals

Check all electrical terminals for tightness

Adjust electrical terminals as needed

Checking Torque on Trantorque Coupling Device

Measure the torque of the Trantorque coupling device with a torque gauge

Is the torque within the specified range?

Inspect all electrical cables for cuts and abrasions

Replace damaged electrical cables as needed
