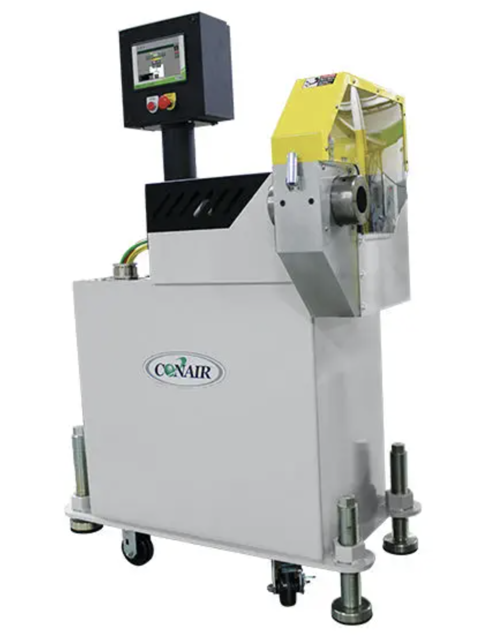

Conair Combination Puller/Cutter CSC3L

Blade Lubrication Tray Maintenance

Clean the blade lubrication tray

Lubricate shafts on slide rail system

Shafts and Grease Fittings Maintenance

Check shafts and grease fittings

Lubricate all shafts and grease fittings as needed

Turn the main power disconnect to the off position

Remove the upper and lower belt guards

Remove the screws attaching guards to unit (four each: top, bottom, front and rear)

Disconnect the safety cable (upper guard)

Check belt tension using a tension-measuring tool

Ensure belts are tight enough to prevent slipping

Ensure the gap between the upper and lower belts is even across the width

Adjust belt tension, if necessary

Ensure the main power is disconnected and the cutter is locked out

Loosen the set screws that hold the cutter bushings

Check the depth of the proximity switch face for each bushing (in inches)

Is the proximity switch face recessed no more than 0.010 inches?

Wear cut-resistant gloves when handling blades

Lock out the cutter before opening the cutting chamber

Ensure the cutter head has stopped completely before opening the knife guard

Check blades for the following issues

Is cleaning, sharpening, or replacement needed?

Describe any issues found during inspection

Wear cut-resistant gloves when handling blades

Lock out the cutter power before opening the cutting chamber

Ensure the cutter head has stopped completely before opening the cutting chamber

Remove the cutter blade carefully

Check for contaminants on the Trantorque coupling device

Ensure the shaft and component bore are free of paint, grease, oil, and dirt

Clean surfaces with a non-petroleum based solvent if necessary

Torque the Trantorque coupling device
