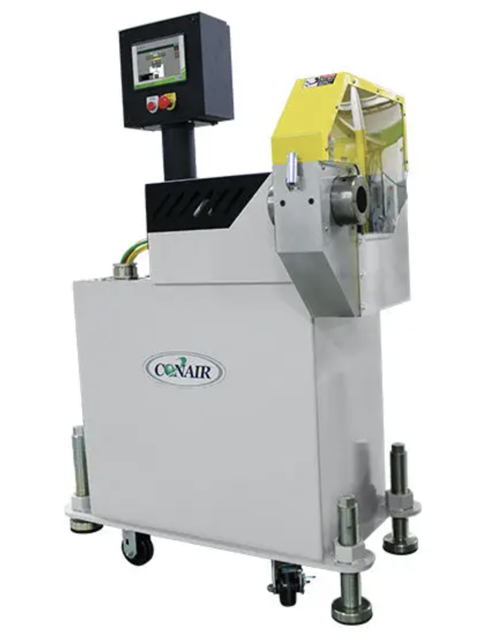

Conair Combination Puller/Cutter CSC5

Inspecting Electrical Terminals

Check all electrical terminals for tightness

Adjust electrical terminals as needed

Checking Torque on Trantorque Coupling Device

Measure the torque of the Trantorque coupling device with a torque gauge

Is the torque within the specified range?

Inspect all electrical cables for cuts and abrasions

Replace damaged electrical cables as needed

Checking hardware on the knife guard

Inspect the hardware on the knife guard

Checking bushing holder proximity switches

Inspect the proximity switch set screws

Adjust proximity switch set screws as needed

Cleaning the clear blade guard window

Clean the clear blade guard window using glass cleaner or plain water

Is the cutter power locked out and cutter head completely stopped?

Carefully remove the cutter blade

Check that all surfaces are free of contaminants

Clean surfaces with non-petroleum based solvent if necessary

Turn the main power disconnect to the off position

Remove the upper and lower belt guards

Remove the screws attaching guards to unit (four each: top, bottom, front and rear)

Disconnect the safety cable (upper guard)

Check belt tension using a tension-measuring tool

Ensure belts are tight enough to prevent slipping

Ensure gap between upper and lower belts is even across the width

Adjust belt tension if necessary

Is there any sign of cracks, tears, or other damage on the belts?

Replace damaged belts if necessary
