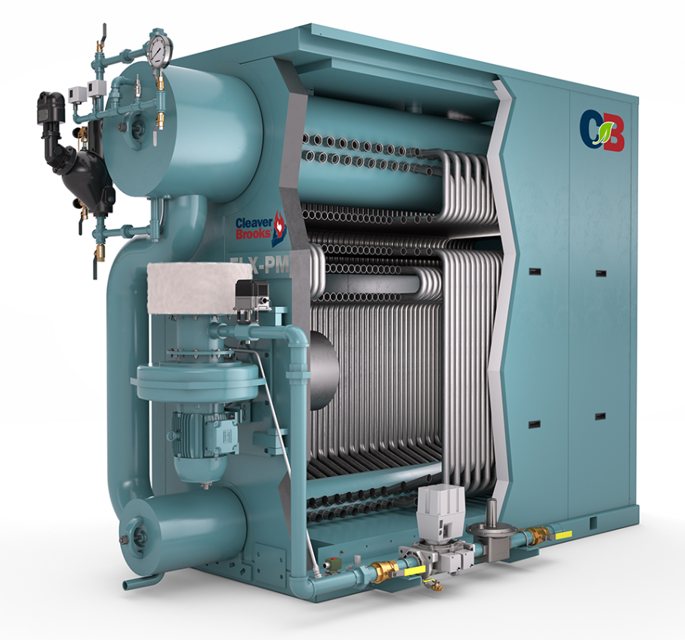

Cleaver-Brooks Packaged Boiler 700-3 - FLX

Need answers fast?
Explore the manual using AI.

Cleaver-Brooks Packaged Boiler 700-3 - FLX
Cleaver-Brooks Packaged Boiler 700-3 - FLX

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Cleaver-Brooks Packaged Boiler 700-3 - FLX

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Cleaver-Brooks Packaged Boiler 700-3 - FLX

Cleaver-Brooks Packaged Boiler 700-3 - FLX

Create an account to install this asset package.

Maintenance Plans for Cleaver-Brooks Packaged Boiler Model 700-3 - FLX

Integrate maintenance plans directly into your work orders in MaintainX.

Full Modulation Combination Gas-Oil Burner Adjustment

Check mark

Set the 'MANUAL-AUTO' switch to the 'MANUAL' position

Check mark

Position the manual flame control potentiometer in the 'CLOSED' (low-fire) position

Check mark

Turn the fuel selector switch to the 'OIL' position

Check mark

Turn the burner switch to the 'ON' position

Check mark

Proceed with startup and adjustments for oil burners

Check mark

Switch to gas firing

Check mark

Place the burner switch to 'OFF'

Check mark

Position the fuel selector switch to 'GAS'

Check mark

Proceed with startup and adjustments for gas burners

Run this procedureArrow right

Gas Pilot Flame Adjustment

Check mark

Pilot Regulator Adjustment

Check mark

Unscrew the regulator cap

Check mark

Turn the adjusting screw to set pressure between 4” to 6” W.C.

Check mark

Flame Signal Verification

Check mark

Obtain DC volt or microamp reading of the flame signal

Check mark

Use the flame safeguard amplifier meter jack for reading

Check mark

Initial Startup and Maintenance Tests

Check mark

Test the pilot flame signal

Check mark

Test the pilot turndown

Run this procedureArrow right

Pilot Flame Failure Check

Check mark

Initial Setup

Check mark

Shut off the main fuel supply

Check mark

Close the gas pilot shutoff cock

Check mark

Ignition Circuit Check

Check mark

Is the pilot ignition circuit energized at the end of the pre-purge period?

Check mark

Is there an ignition spark but no flame?

Check mark

Did the program relay signal the condition due to no flame detection?

Check mark

Safety Shutdown Verification

Check mark

Did the ignition circuit de-energize?

Run this procedureArrow right

Upper Pass Cleaning

Check mark

Preparation

Check mark

Disconnect and remove any electrical conduit, boxes, and brackets attached to the side outer casing.

Check mark

Match mark the outer panels for repositioning.

Check mark

Remove screw from frame above each outer panel, if installed.

Check mark

Outer Casing Removal

Check mark

Slide center panel up, swing bottom of panel away from boiler, slide down from upper frame, and set aside.

Check mark

Slide end panels towards the center until free from the corner frame and remove.

Check mark

Are there obstructions preventing panel removal?

Check mark

Unscrew the upper frame from the roof and side frames if obstructions are present.

Run this procedureArrow right

Diffuser Maintenance

Check mark

Preparation

Check mark

Remove the electrode leads

Check mark

Remove the gas pilot assembly

Check mark

Remove the air and oil tubes

Check mark

Diffuser Removal

Check mark

Mark the diffuser's relative position to the blast tube

Check mark

Remove the screws holding the diffuser to the blast tube

Check mark

Slowly pull the diffuser along the blast tube towards the firing head

Check mark

Cleaning and Reinstallation

Run this procedureArrow right
