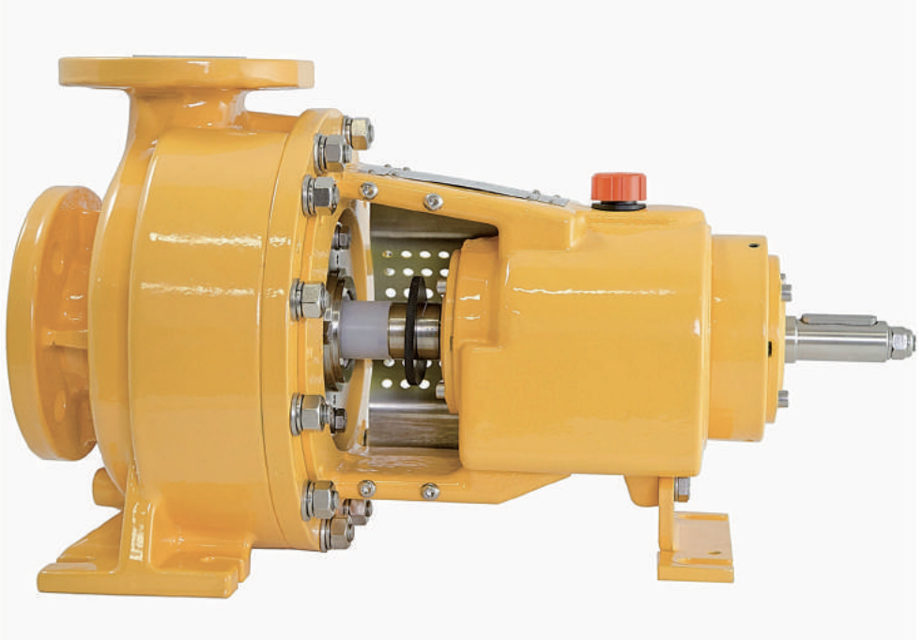

CDR Pompe Pump UCL 50-32-160 60 Hz

Ensure alignment is checked before commissioning or after maintenance

Ensure motor is stopped and in safety before checking alignment

Leave the pump in its position and only move the motor

Loosen the bolts of the motor feet if fixed directly to the base

Loosen the bolts securing the motor plate to the threaded columns if fixed on an adjustable plate

Adjust height by inserting or removing thin metal sheets under the feet of the motor or by adjusting the threaded screws

Verify the following conditions before proceeding

Record the current bearing temperature

Is the bearing temperature within the specified range?

Change the oil using the specified lubricant

Monitor the bearing temperature after oil change

Describe any unusual temperature changes observed

Verify lubricant specifications

Record bearing bracket temperature

Is the bearing temperature within safe limits?

Describe any observed temperature fluctuations

Verify lubricant type and application limits

Check lubricated rolling bearings type

Enter the oil quantity for the 1st bracket (in grams)

Enter the oil quantity for the 2nd bracket (in grams)

Is the oil level at the center of the warning light?

Select the lubricant brand used

Ensure the following conditions are met before starting the pump

Is the suction pipe filled and foot valve working properly to prevent backflow?

Verify the direction of rotation and motor operation

Is the liquid at the required temperature to prevent crystallization or solidification?

Ensure auxiliary connections are connected and working

Is the oil level adequate for pumps with oil lubricated bearing bracket?

Are the operating and functional parameters of the mechanical seal followed as per Data Sheet?
