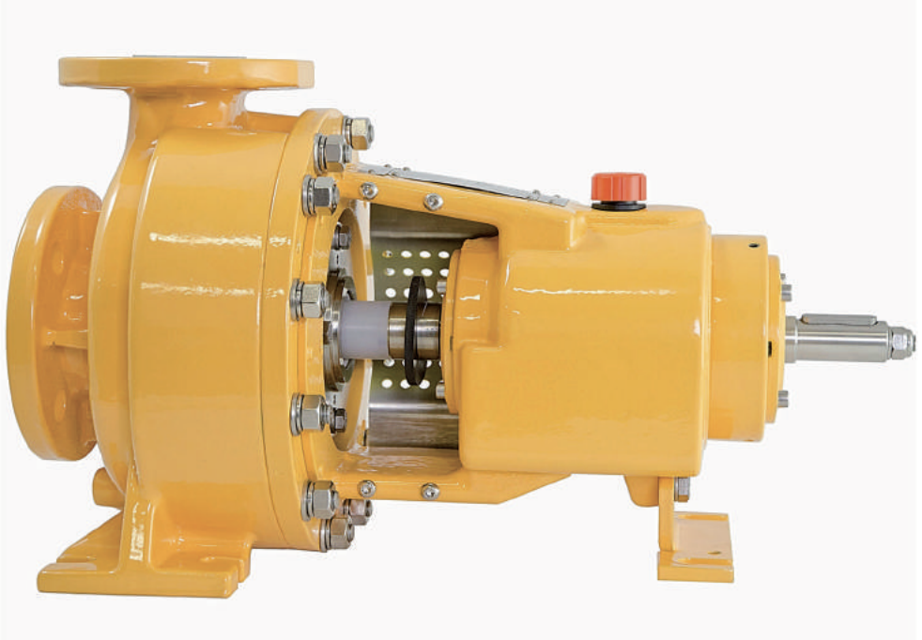

CDR Pompe Pump UCL 25-25-160 50 Hz

Record the current bearing bracket temperature

Is the bearing bracket temperature within the safe range (up to 70°C)?

Use lubricant with viscosity of 46Cst

Verify application limits and room temperature

Is the pump installed in an environment with an explosion hazard?

Monitor the bearing temperature during operation

Describe any unusual temperature changes observed

Verify the type of lubricant used

Enter the viscosity of the lubricant used (cSt)

Enter the quantity of lubricant used for the 1st bracket (grams)

Enter the quantity of lubricant used for the 2nd bracket (grams)

Is the oil level at the center of the warning light?

Check the type of lubricated rolling bearings

Ensure the pump is stored correctly

Verify protection caps and lids of the flanges are on the pump

Is the pump stored for a long period or in severe conditions?

If yes, ensure additional protective measures are taken

Check alignment before commissioning or after maintenance

Ensure motor is stopped and in safety before checking alignment

Is the pump left in its position and only the motor moved?

For motors fixed directly to the base, loosen the bolts of the motor feet

For motors fixed on an adjustable plate, loosen the bolts securing the motor plate to the respective threaded columns

Make height adjustments by inserting or removing thin metal sheets under the feet of the motor or by adjusting the threaded screws

Record the current bearing bracket temperature

Is the bearing bracket temperature between 80°C and 90°C?

Ensure the lubricant used has a viscosity of 46Cst

Verify application limits and room temperature

Monitor the bearing temperature for pumps in explosive environments

Describe any observed temperature increase or anomalies
