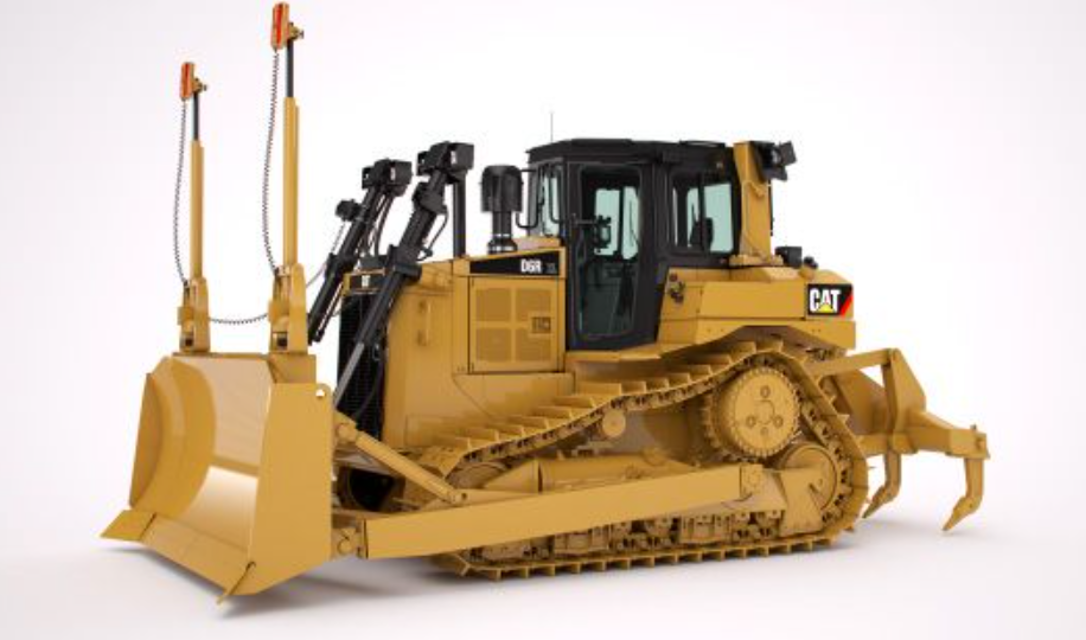

CAT CAT Bulldozer D6R D6R

If Tractor is not equipped with ripper controls or pat blade:

1. Replace existing studs (item 107) with longer (15.75-inch long) studs provided with winch kit.

2. Add winch valve section (item 100) to top of valve stack.

3. Reinstall stack valve end-cap using existing nuts and washers

4. Install split-fl ange halves, bolts, and washers (items 101, 102, & 103) fi nger tight for safe-keeping until required for winch control group installation.

If Tractor is equipped with pat blade but not ripper controls:

1. Replace existing studs (item 107) with longer (18.1-inch long) studs provided with winch kit.

2. Add winch valve section (item 100) to top of valve stack.

3. Re-install stack valve end-cap using existing nuts and washers.
