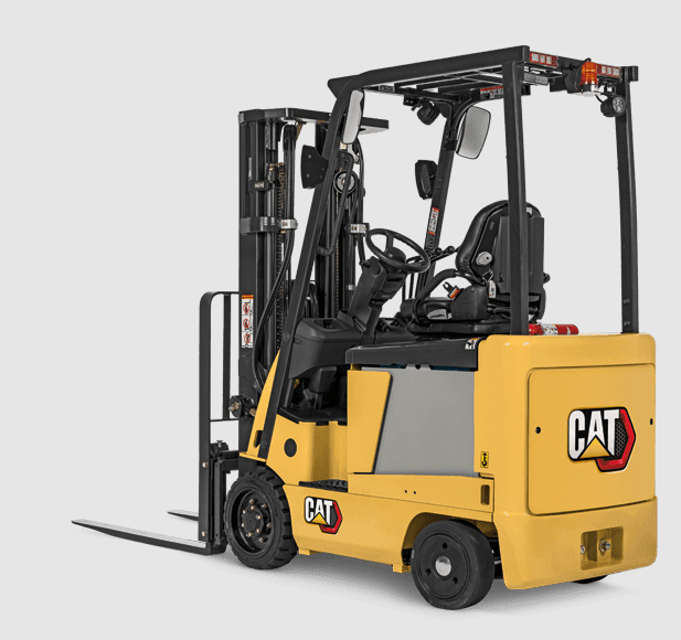

CAT CAT Forklift GC55KSTR GC55KSTR

Warning: When using compressed air for cleaning, wear an approved face shield and protective clothing. Use maximum air pressure of 2 kgf/cm2 (30 psi) for cleaning purposes.

Notice: Never service the air cleaner with the engine running. Do not clean the elements by striking them against another object. Always inspect the element before and after cleaning. Use a light inside the element. Do not use elements with damaged pleats, gaskets or seals.

Park the lift truck on a level surface, with the forks lowered, the parking brake applied, the transmission in NEUTRAL and the engine stopped.

Caution: Install the dust pan with its arrow mark up.

Remove the dust pan by releasing the latches at three places.

Unscrew the wing nut, and remove the element by pulling it.

Remove the cover from the dust pan, and clean the inside of the pan by removing dust.

Clean the inside of the air cleaner housing.

Replace hydraulic tank return oil filter

Retighten bolts and nuts of overhead guard

Powershift Transmission Change Oil and Wash Strainer

Hydraulic System Change Return Oil Filter and Wash Strainer

WARNING: Hot oil and components could cause serious injury. Do not allow hot oil or components to contact your skin.

NOTICE: When changing fluid consult with your Cat lift truck dealer.

Parts to be Changed Periodically

Sign off on the forklift maintenance

Lift bracket raised and secured

Level/fill plug removed and cleaned

Lubricant level maintained to the bottom of the level/fill hole

Level/fill plug put back in place

Powershift transmission oil level checked
