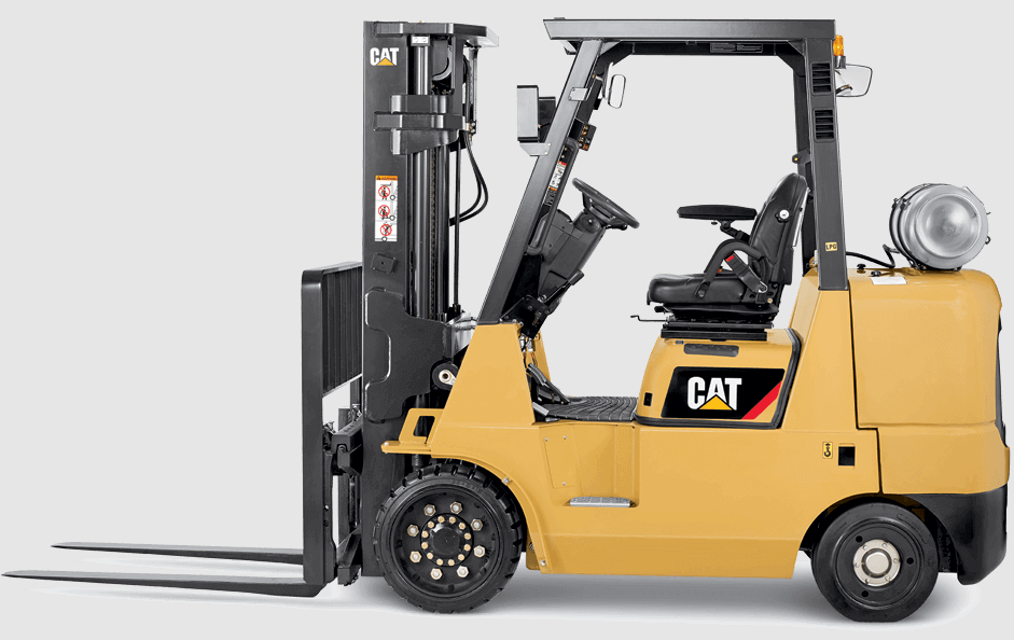

CAT CAT Forklift GC40K-STR GC40K-STR

Check Damaged or faulty operation found the day before

Check Oil, fuel or coolant leaks

Check Tilt cylinder socket bolts

Hydraulic tank return oil filter

– Bolts and nuts of overhead guard should be retightened.;

Park the lift truck on a level surface, parking brake applied, transmission in NEUTRAL and the engine stopped.

1. Raise the lift bracket high enough to gain access to the level/fill plug.

2. Use blocking under the inner mast to secure the lift bracket in this position.

3. Remove the level/fill plug. Maintain lubricant level to the bottom of the level/fill hole.

4. Clean the level/fill plug and put it back in place.

5. Remove the blocking. Lower the lift bracket.

Powershift transmission Check Oil Level

WARNING: When using compressed air for cleaning, wear an approved face shield and protective clothing. Use maximum air pressure of 2 kgf/cm2 (30 psi) for cleaning purposes.

NOTICE: Never service the air cleaner with the engine running. Do not clean the elements by striking them against another object. Always inspect the element before and after cleaning. Use a light inside the element. Do not use elements with damaged pleats, gaskets or seals.

Park the lift truck on a level surface, with the forks lowered, the parking brake applied, the transmission in NEUTRAL and the engine stopped.

CAUTION: Install the dust pan with its arrow mark up.

Remove the dust pan by releasing the latches at three places.

Unscrew the wing nut, and remove the element by pulling it.

Remove the cover from the dust pan, and clean the inside of the pan by removing dust.

Clean the inside of the air cleaner housing.

Powershift Transmission Change Oil and Wash Strainer

Hydraulic System Change Return Oil Filter and Wash Strainer
