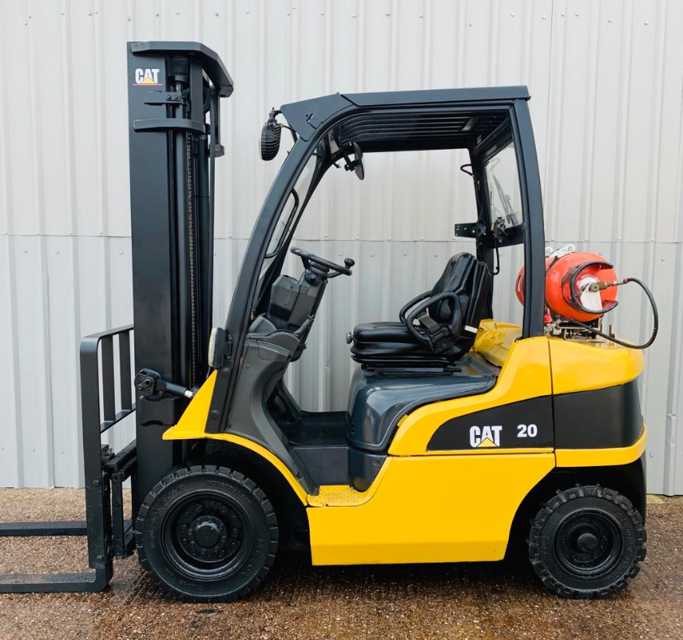

CAT CAT Forklift GP20N GP20N

Hydraulic Pump Inspection and Repair

(1) Check the gear teeth for wear, chipping or other defects.

(2) Check the side faces of the gears for wear or damage.

(3) Check the shafts for wear or damage.

Check these parts for wear or damage.

1. Second cylinder for simplex mast and triplex mast Inspection after disassembly

Control Valve Assembly Inspection after Disassembly

Check valves for burrs, scratches, dents and other surface defects.

(1) Check that all moving and sliding contact parts move smoothly.

(2) Check for clogged orifices.

(3) Replace springs if they are broken or bent. Measure the free length of springs.;

The following parts should be periodically changed as noted below.

These parts are made of materials which will deteriorate overtime. Further, it is difficult to determine visually whether or not they are still in good condition. Changing at proper intervals will reduce the risk of injury to the operator and damage to the truck.

4000 service hours or 2 years, whichever comes first:

• Rubber parts of power cylinder

• Hydraulic hoses of steering system

4000 to 8000 service hours or 2 to 4 years, whichever comes first:

Measure the resistance value of the relay coil at terminal 3 and terminal 4

Is the measured resistance value within the standard resistance value?

Measure the insulation resistance value between terminal 1 and terminal 2

Is the measured insulation resistance value more than the value listed in the table?

Apply a tester to terminal 1 and terminal 2

Does the relay activate to cause continuity between terminal 1 and terminal 2 when applying a voltage of 12 V ON and OFF across terminal 3 and terminal 4?

Sign off on the glow relay inspection

The following parts should be periodically changed as noted below.

These parts are made of materials which will deteriorate overtime. Further, it is difficult to determine visually whether or not they are still in good condition. Changing at proper intervals will reduce the risk of injury to the operator and damage to the truck.

2000 service hours or 1 year, whichever comes firstRubber parts of brake master cylinder:

• Rubber parts of brake master cylinder

• Rubber parts of brake wheel cylinders

2000 to 4000 service hours or 1 to 2 years whichever comes first:

• High pressure hoses of hydraulic system
