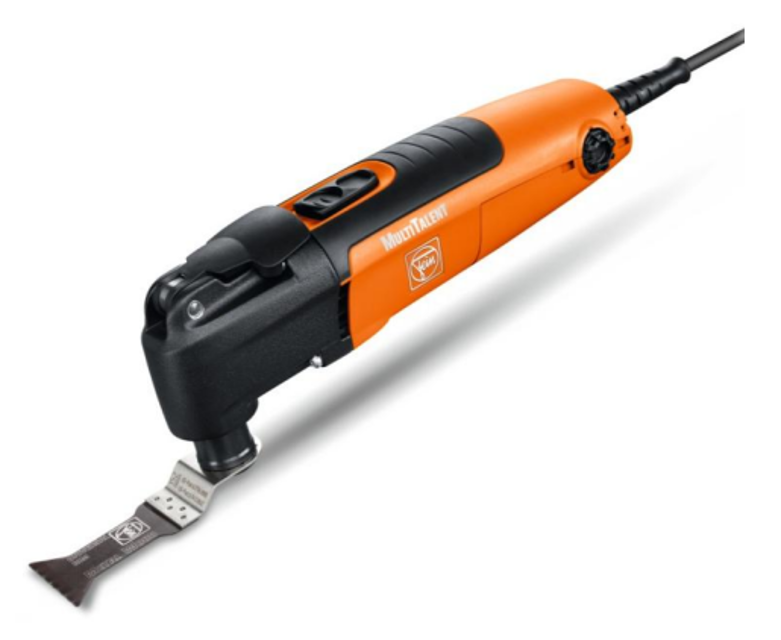

C. & E. Fein Oscillating Multi-Tool FMT 250Q

Spring and Carbon Brush Removal

Raise spring and lift into cut-out

Disconnect and remove carbon brushes on both sides

Carbon Holder and Connector Removal

Unscrew the two screws and remove carbon holder

Pull off cables and remove the two connectors

Cable and Field Coil Installation

Connect connecting cables to stator as shown in illustration

Insert field coil in motor housing

Ensure that the ID number of the stator is on the same side as the switch

Using hook, pull cables out of stator

Secure brush holders with the two screws

Slide the two carbon brushes into brush holders and connect to appropriate connector

Cable and Electronics Connection

Slide cable grommet onto cable with plug

Connect cable with plug to electronics

Connect cables of stator to electronics

Ensure switch is sitting in the control rod's cut-out

Electronics Insertion and Securing

Insert electronics into motor housing

Torque for securing cable with plug

Clip slide switch (1) into motor housing

Insert control rod (2) into motor housing

Fit control rod in slide switch
