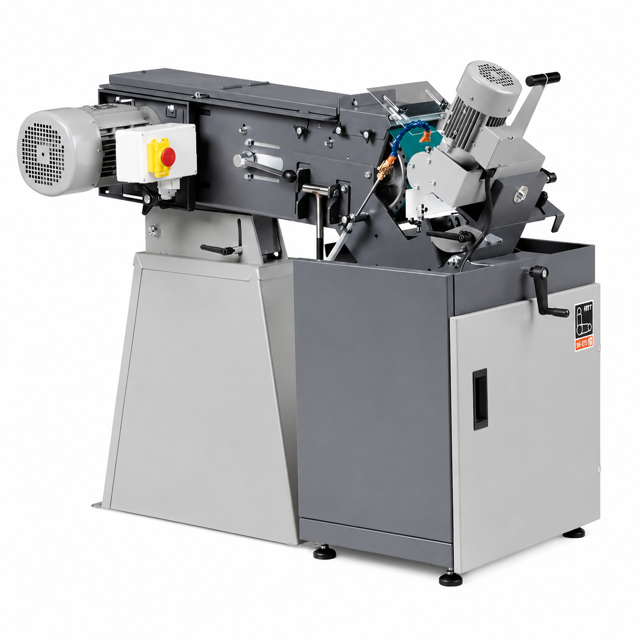

C. & E. Fein Belt Grinder GI1502H
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for C. & E. Fein Belt Grinder GI1502H
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
C. & E. Fein Belt Grinder GI1502H
Create an account to install this asset package.
Maintenance Plans for C. & E. Fein Belt Grinder Model GI1502H
Integrate maintenance plans directly into your work orders in MaintainX.
Belt Grinder Stop Adjustment
Safety Precautions
Pull the power plug from the socket outlet
Adjustment Process
Loosen the screws (3)
Adjust the gap size
Tighten screws (3) again
1 Monthly Belt Grinder Bearings Lubrication
Warning: Repairs by Qualified Persons Only
Record the qualified person performing the lubrication
Lubrication Process
Lubricate the bearing points of the tensioning device via the lubricating nipple (24)
Service Center Recommendation
Was the lubrication performed at a FEIN customer service centre, authorised service centre, or FEIN agency?
If not, specify the location where the lubrication was performed
Grinding Belt Change
Preparation
Pull the power plug from the socket outlet
Remove Old Grinding Belt
Loosen screw (25) and fold the side cover (26) down
Loosen the star-knob bolt (11) and remove the grinding rest and the dust collector (8)
Push belt tension lever (13) down to release the clamping device
Remove the old grinding belt
Install New Grinding Belt
Is the running direction on the inner side of the grinding belt correct?
Belt Grinder Grinding Rest Adjustment
Safety Precaution
Ensure the power plug is disconnected from the socket outlet
Adjust the gap size
Loosen star-knob bolt (11)
Adjust the gap size to 2 mm (max.)
Tighten the star-knob bolt again
1 Daily Belt Grinder Lubrication
Warning: Repairs by Qualified Personnel Only
Specify the qualified personnel responsible for repairs
Select the recommended service centers for repairs
Daily Lubrication Procedure
Lubricate the machine with machine oil
Was the lubrication completed successfully?
