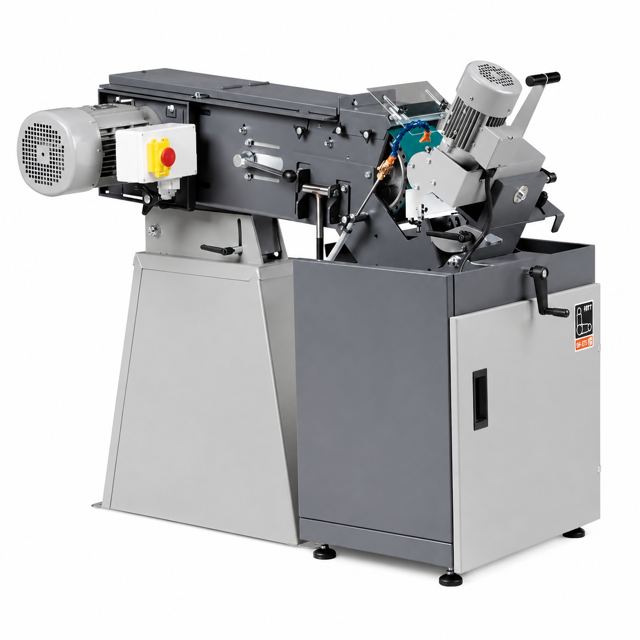

C. & E. Fein Belt Grinder GI75

Warning: Repairs may be carried out only by qualified persons in conformity with the valid regulations.

Ensure repairs are conducted by qualified personnel only.

Consider using FEIN customer service centre for repairs.

Consider using FEIN authorised service centres and FEIN agencies for repairs.

Blow out the ventilation slots at the motor housing and marked locations with compressed air.

Check for wear and damage when changing the grinding belt

Warning: Repairs by Qualified Personnel Only

Specify the qualified personnel responsible for repairs

Recommended Service Centers for Repairs

Lubricate the machine with machine oil at marked locations

Refer to Instruction label (27) for lubrication points

Pull the power plug from the socket outlet

Loosen screw (25) and fold the side cover (26) down

Loosen screws (12) and align the face-grinding rest (22)

Shut the side cover (26) and tighten screw (25) again

Check the gap size at the stop (4) (max. 2 mm)

Ensure the power plug is disconnected from the socket outlet

Adjust the gap size to 2 mm (max.)

Tighten the star-knob bolt again

Pull the power plug from the socket outlet
