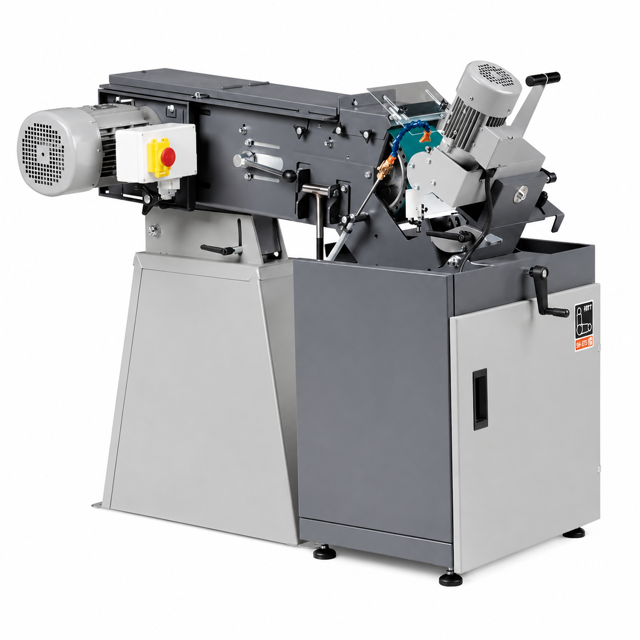

C. & E. Fein Belt Grinder GI150

Adjust the gap size to 2 mm (max.)

Warning: Repairs by Qualified Persons Only

Record the qualified person performing the lubrication

Locate the lubricating nipple (24) on the tensioning device

Lubricate the bearing points via the lubricating nipple

Was the lubrication process completed successfully?

Consider contacting for repairs

Warning: Repairs by Qualified Persons Only

Specify the qualified person performing the lubrication

Locate the lubrication points as per Instruction label (27)

Apply machine oil to each lubrication point

Was the lubrication process completed successfully?

Is the machine operating smoothly after lubrication?

Describe any issues encountered during lubrication

Ensure the power plug is pulled from the socket outlet

Loosen screw (25) and fold the side cover (26) down

Loosen screws (12) and align the face-grinding rest (22)

Shut the side cover (26) and tighten screw (25) again

Check the gap size at the stop (4) (max. 2 mm)

Ensure the power plug is pulled from the socket outlet before any work on the machine.

Switch the machine on briefly to check the belt tracking.

Adjust the belt tracking with the star-knob bolt (17) until centred.

If the belt tracking cannot be adjusted centred, proceed with the following steps.

Clean the drive wheel (23) and the contact wheel (21) with compressed air.

Inspect the drive wheel and the contact wheel for wear, deformation, and damage.

Have damaged components replaced without delay.
