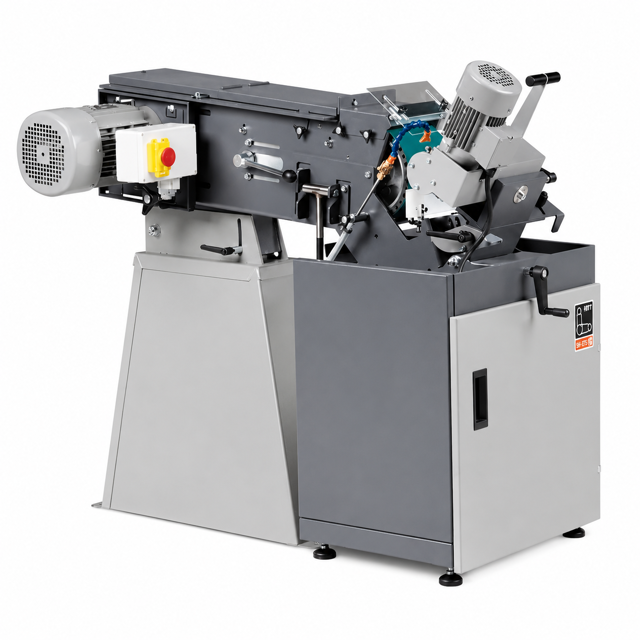

C. & E. Fein Belt Grinder GI752V
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for C. & E. Fein Belt Grinder GI752V
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
C. & E. Fein Belt Grinder GI752V
Create an account to install this asset package.
Maintenance Plans for C. & E. Fein Belt Grinder Model GI752V
Integrate maintenance plans directly into your work orders in MaintainX.
Belt Grinder Grinding Rest Adjustment
Warning: Disconnect power
Loosen star-knob bolt (11)
Adjust the gap size to 2 mm (max.)
Tighten the star-knob bolt
1 Monthly Belt Grinder Bearings Lubrication
Warning: Repairs by Qualified Persons Only
Record the qualified person performing the lubrication
Lubrication Process
Locate the lubricating nipple (24) on the tensioning device
Lubricate the bearing points via the lubricating nipple
Service Recommendations
Consider using FEIN customer service centre for repairs
Consider using FEIN authorised service centres for repairs
Consider using FEIN agencies for repairs
Belt Grinder Spark Guard Adjustment
Safety Precautions
Pull the power plug from the socket outlet
Spark Guard Adjustment
Loosen both wing bolts and adjust the spark guard
Tighten both wing bolts
Belt Grinder Stop Adjustment
Safety Precautions
Pull the power plug from the socket outlet
Adjustment Process
Loosen the screws (3)
Adjust the gap size
Tighten screws (3) again
1 Daily Belt Grinder Lubrication
Warning: Repairs by Qualified Persons Only
Specify the qualified person performing the lubrication
Lubricate the machine with machine oil at the marked locations
Post Lubrication Check
Is the lubrication complete at all marked locations?
Check for any oil leaks after lubrication
Service Center Recommendation
Consider contacting FEIN customer service centre for repairs
Consider contacting FEIN authorised service centres for repairs
