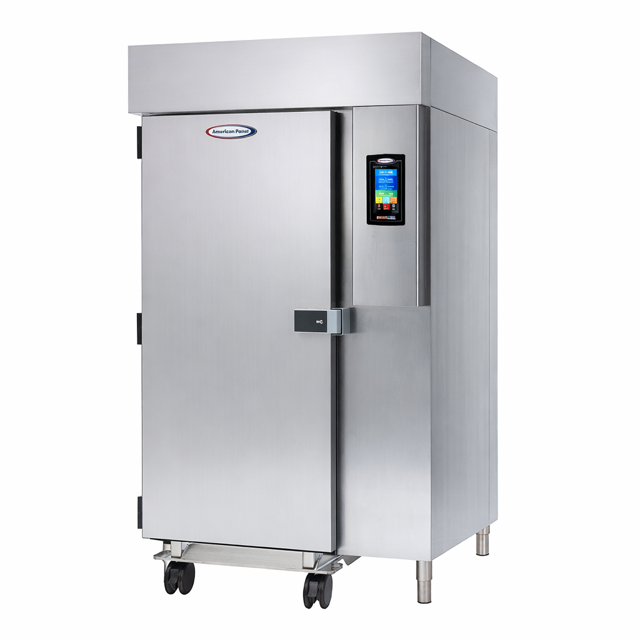

American Panel Shock Freezer AP24BC250-3(-R)

Disconnect the unit from the main electrical power

Extract the lamp from the top, pull to disconnect the wire harness, and replace the lamp

Close and secure the evaporator door

Reconnect the main electrical power to the unit

Engage the sanitation cycle and let it run for 5 to 10 minutes

Is there a strong ozone smell inside the cabinet?

Inspect components for proper operation and seal

Use vacuum and brush to clean the condenser coil

Was the maintenance performed by a service technician or trained personnel?

Defrost the unit daily or as needed

Wipe clean the interior and the exterior of the unit using a solution of mild soap and water

Engage the sanitation cycle (if equipped)

Run the defrost cycle to ensure the coil is free of ice

Disconnect and lock the main power switch

Open the evaporator door by removing the screws and swing the door open

Use a vacuum cleaner or a soft non-metallic bristle to remove surface fibers and dirt

Ensure water temperature is below 130°F during rinsing

Ensure water pressure is below 100 PSI during rinsing

Rinse the coil finned area and return bends with clean warm water

Run the defrost cycle to ensure the coil is free of ice.

Disconnect and lock the main power switch.

Remove screws securing the evaporator door to the vertical frame.

Swing the evaporator door open.

Use a vacuum cleaner or soft non-metallic bristle brush to remove surface fibers and dirt in the direction of the fins.

Spray the coil finned area and return bends with the recommended coil cleaner using a pump-up sprayer or conventional spray bottle.
