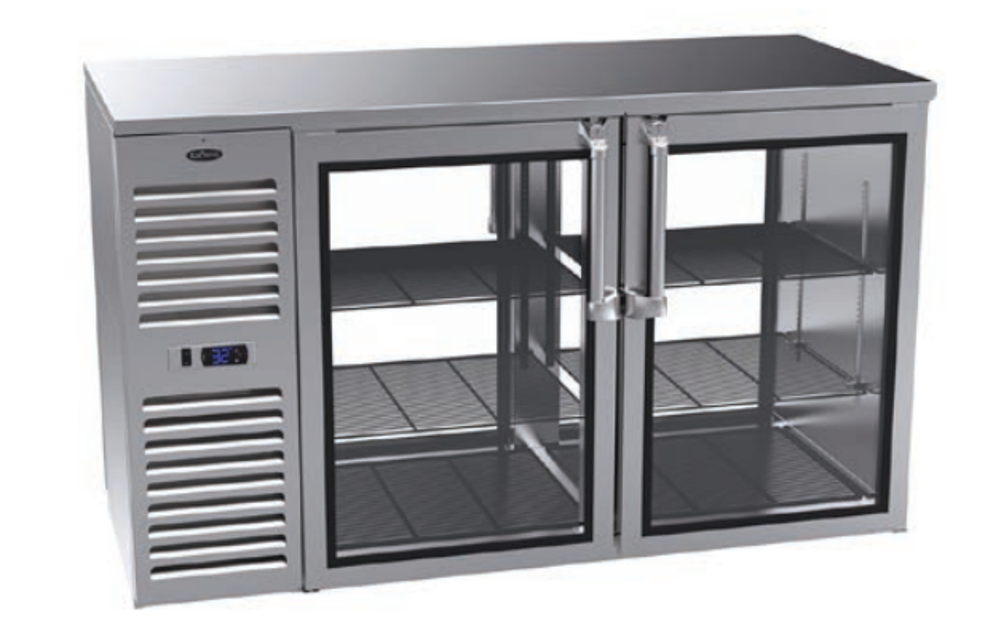

Krowne Pass Thru Back Bar Cooler KPT36L

Locate the 1/4” hex screws on the front of the unit.

Remove the 1/4” hex screws on the front of the unit above the doors and set them aside.

Locate the 1/4” hex screws on the back of the unit.

Remove the 1/4” hex screws on the back of the unit and set them aside.

Was the existing stainless steel top lifted off with 2 or more people?

Place the new stainless steel top on the unit.

Apply pressure to the bottom of the clip and slide out to remove

Align clips to desired height using the numbered slots on the pilaster strips

Adjust all clips to the same number on the pilaster strips

Insert the top part of the clip into the slot

Ensure the unit is turned off using the shut off switch next to the digital thermostat.

Remove the front grill to access the condenser.

Use a mild detergent, warm water, and a soft cloth to clean the condenser.

Ensure all cleaning materials are thoroughly washed away.

Completely dry the condenser after cleaning.

Cleaning the Cooler Interior and Doors

Clean the doors and interior of the cooler with a mild detergent, warm water, and a soft cloth.

Removing the Stainless Steel Top

Does the unit have an unfinished top?

Locate hex screws on the underside of the stainless steel top and unscrew with a 1/4” hex screwdriver.

Unscrew the (3) 3/8” hex screws located on the top frame of each door using a 3/8” hex screwdriver.

Lift stainless steel top up to remove.

Align new door with the bottom hinge and re-screw the top (3) 3/8” hex bolts to secure the door.

Place the stainless steel top back onto the unit and secure with the 1/4” hex bolts.

Remove the (4) 1/4” hex screws to remove the existing light

Reconnect wires with wires from the new light

Reattach the electrical connector to the new wires
