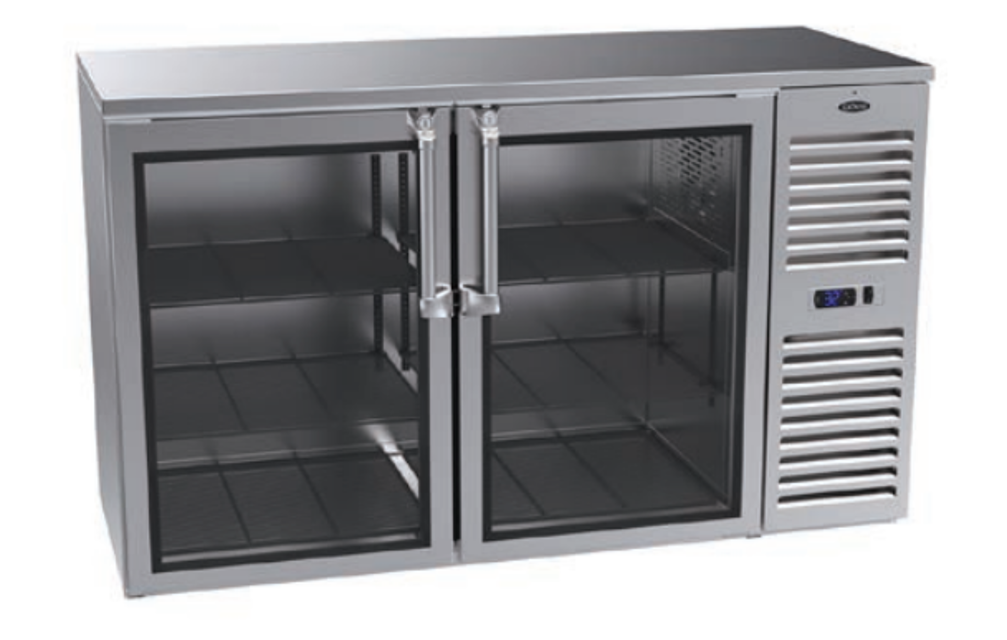

Krowne Self-Contained Back Bar Cooler BS108

Locate the spring on the top frame of your refrigeration unit

Insert the top half into the frame, ensuring the spring is pulled back with the door

Apply pressure and push the bottom half in until you hear it snap into place

Check for any visible gaps or misalignments

Ensure the unit is turned off (switch located next to digital thermostat)

Remove front grill for access to condenser

Clean the condenser with mild detergent, warm water, and a soft cloth

Ensure all cleaning materials are washed away

Cleaning the Cooler Interior and Doors

Clean the interior and doors with mild detergent, warm water, and a soft cloth

Removing the Stainless Steel Top

Does the unit have a stainless steel top?

Locate hex screws on the underside of the stainless steel top and unscrew with a 1/4” hex screwdriver.

Unscrew the (3) 3/8” hex screws located on the top frame of each door using a 3/8” hex screwdriver.

Lift stainless steel top up to remove.

Ensure assistance is available to prevent doors from dropping rapidly

Power Down and Remove Existing Light

Wire Disconnection and Reconnection

Remove light and cut off both wire caps

Reconnect wires with wires from the new light

Reattach the electrical connector to the new wires

Locate the 1/4” hex screws on the front of the unit.

Remove the 1/4” hex screws on the front of the unit above the doors and set them aside.

Locate the 1/4” hex screws on the back of the unit.

Remove the 1/4” hex screws on the back of the unit and set them aside.

Was the existing stainless steel top lifted off with 2 or more people?

Place the new stainless steel top on the unit.
