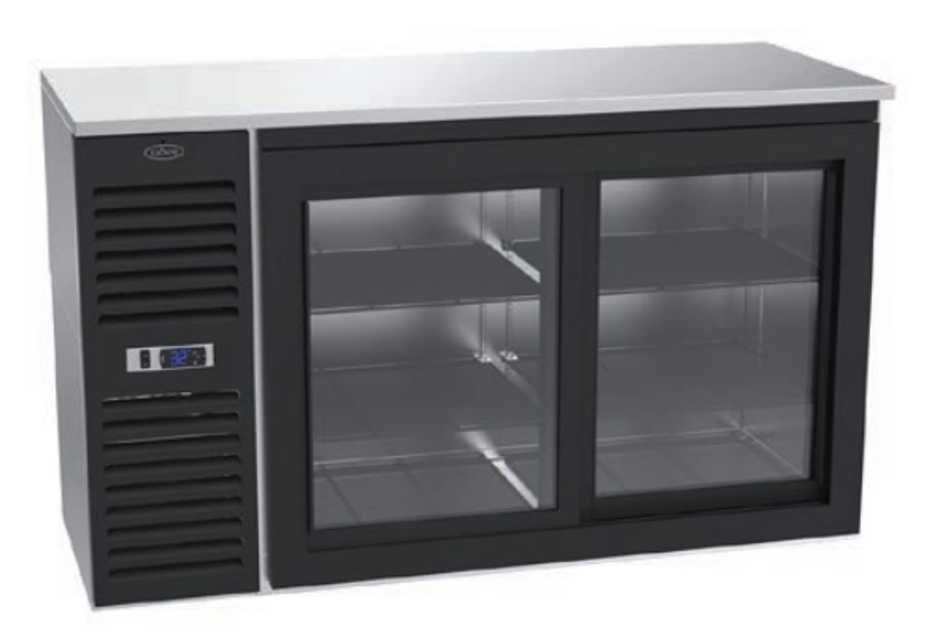

Krowne Sliding Door Back Bar Cooler SD108

Locate the spring on the top frame of the refrigeration unit

Insert the top half into the frame ensuring the spring is pulled back with the door

Apply pressure and push the bottom half in until it snaps into place

Remove the eight 32 x 1/2” Phillips head screws from the top and bottom bracket of the existing door handle.

Remove the handle and set the screws aside for reuse.

Slide the handle rod into the bottom bracket and top bracket.

Insert the lock at an angle into the slot on the backside of the top bracket.

Is the lock positioned facing down?

Align the top bracket with the holes on the top of the door and secure with existing screws.

Ensure the unit is turned off using the shut off switch next to the digital thermostat.

Remove the front grill to access the condenser.

Clean the condenser with a mild detergent, warm water, and a soft cloth.

Ensure all cleaning materials are washed away.

Cleaning the Cooler Interior and Doors

Clean the interior and doors with a mild detergent, warm water, and a soft cloth.

Locate the 1/4” hex screws on the front of the unit.

Remove the 1/4” hex screws on the front of the unit above the doors and set them aside.

Locate the 1/4” hex screws on the back of the unit.

Remove the 1/4” hex screws on the back of the unit and set them aside.

Was the existing stainless steel top lifted off with 2 or more people?

Place the new stainless steel top on the unit.

Remove the (4) 1/4” hex screws to remove the existing light

Reconnect wires with wires from the new light

Reattach the electrical connector to the new wires
