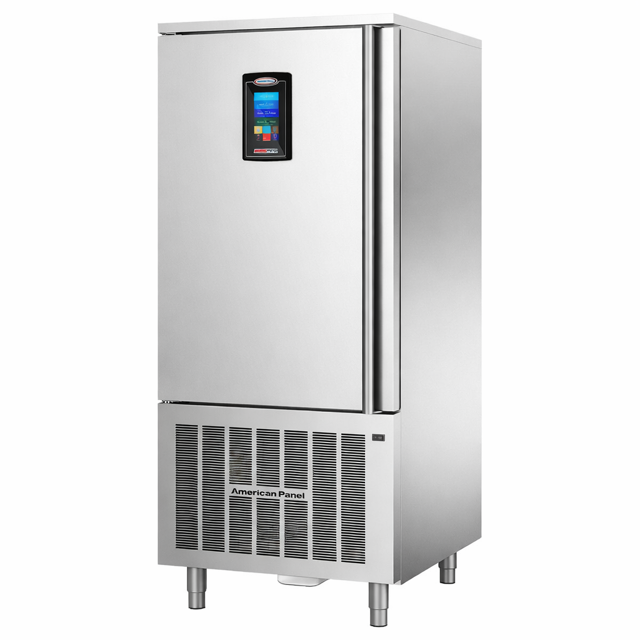

American Panel Shock Freezer AP10BCF100-2

Run the defrost cycle to ensure the coil is free of ice.

Disconnect and lock the main power switch.

Remove screws securing the evaporator door to the vertical frame.

Swing the evaporator door open.

Use a vacuum cleaner or soft non-metallic bristle brush to remove surface fibers and dirt in the direction of the fins.

Spray the coil finned area and return bends with recommended coil cleaner using a pump-up sprayer or conventional spray bottle.

Disconnect the unit from the main electrical power

Extract the lamp from the top and disconnect the wire harness

Close and secure the evaporator door

Reconnect the main electrical power to the unit

Engage the sanitation cycle and let it run for 5 to 10 minutes

Run the defrost cycle to ensure the coil is free of ice

Disconnect and lock the main power switch

Open the evaporator door by removing the screws and swing the door open

Use a vacuum cleaner or a soft non-metallic bristle to remove surface fibers and dirt

Ensure water temperature is below 130°F

Ensure water pressure is below 100 PSI

Rinse the coil finned area and return bends with clean warm water

Inspect components for proper operation and seal

Use vacuum and brush to clean the condenser coil

Defrost the unit daily or as needed

Wipe clean the interior and the exterior of the unit using a solution of mild soap and water

Engage the sanitation cycle (if equipped)
