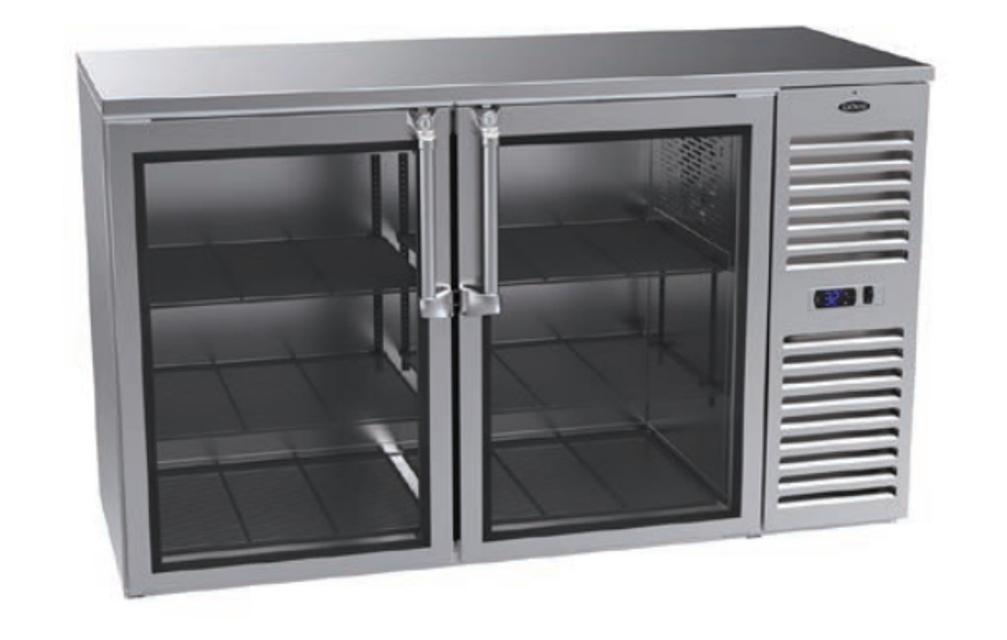

Krowne Self-Contained Back Bar Cooler BS36R-BSS-L

Removing the Stainless Steel Top

Does the unit have a stainless steel top?

Locate hex screws on the underside of the stainless steel top and unscrew with a 1/4” hex screwdriver.

Unscrew the (3) 3/8” hex screws located on the top frame of each door using a 3/8” hex screwdriver.

Lift stainless steel top up to remove.

Remove the door(s) carefully as they may drop rapidly.

Locate the spring on the top frame of the refrigeration unit

Insert the top half into the frame ensuring the spring is pulled back with the door

Apply pressure and push the bottom half in until it snaps into place

Apply pressure to the bottom of the clip and slide out to remove

Align clips to desired height using the numbered slots on the pilaster strips

Adjust all clips to the same number on the pilaster strips

Insert the top part of the clip into the slot

Remove the eight 32 x 1/2” Phillips head screws from the top and bottom bracket of the existing door handle.

Remove the handle and set the screws aside for reuse.

Slide the handle rod into the bottom bracket and top bracket.

Insert the lock at an angle into the slot on the backside of the top bracket.

Is the lock positioned facing down?

Align the top bracket with the holes on the top of the door and secure with existing screws.

Ensure the unit is turned off (switch located next to digital thermostat)

Remove front grill to access condenser

Clean the condenser with mild detergent, warm water, and a soft cloth

Wash away all cleaning materials

Ensure the condenser is completely dried

Cleaning the Cooler Interior and Doors

Clean the interior and doors with mild detergent, warm water, and a soft cloth
