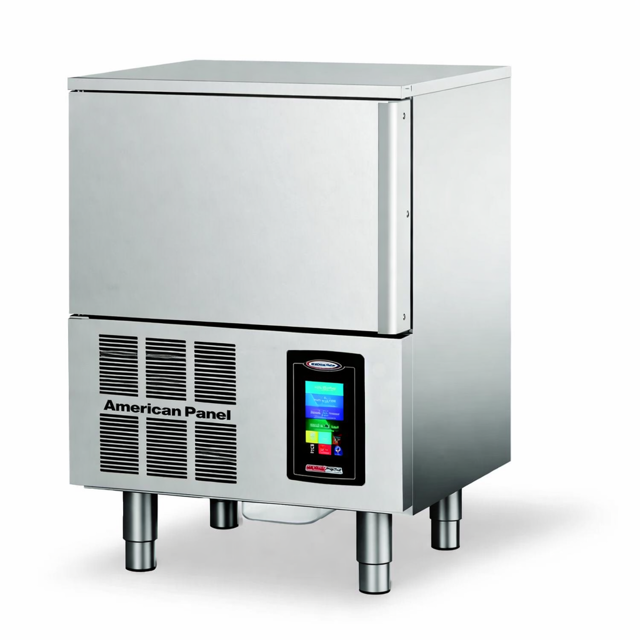

American Panel Shock Freezer AP3BCF30-1 TS

Ensure unit is properly installed

Verify electrical service according to manufacturer label

Verify proper drain pan installation or hard plumbed

Inspect drain lines for integrity and proper flow

Check door hinges and gasket for proper operation and seal

Clean door gasket with mild soapy warm water

Defrost the unit daily or as needed

Wipe clean the interior of the unit using a solution of mild soap and water

Wipe clean the exterior of the unit using a solution of mild soap and water

Engage the sanitation cycle (if equipped)

Inspect components for proper operation and seal

Use vacuum and brush to clean the condenser coil

Was the maintenance performed by a service technician or trained personnel?

Run the defrost cycle to ensure the coil is free of ice.

Disconnect and lock the main power switch.

Remove screws securing the evaporator door to the vertical frame.

Swing the evaporator door open.

Use a vacuum cleaner or soft non-metallic bristle brush to remove surface fibers and dirt in the direction of the fins.

Spray the coil finned area and return bends with recommended coil cleaner using a pump-up sprayer or conventional spray bottle.

Run the defrost cycle to ensure the coil is free of ice

Disconnect and lock the main power switch

Open the evaporator door by removing the screws and swing the door open

Use a vacuum cleaner or a soft non-metallic bristle to remove surface fibers and dirt

Ensure water temperature is below 130°F during rinsing

Ensure water pressure is below 100 PSI during rinsing

Rinse the coil finned area and return bends with clean warm water
