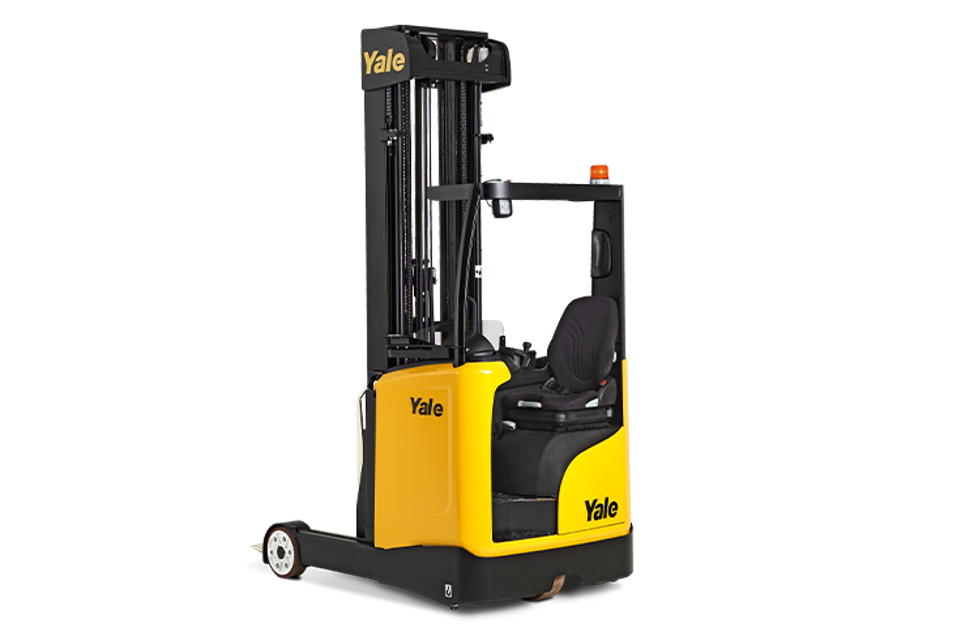

Yale Material Handling Corporation Reach Truck MR14

Equipment and tools: small flat blade screwdriver, brush

Before starting work, ensure that you are wearing suitable protective clothing.

Perform the traction motor dismantling procedure (see “DISMANTLING THE TRACTION MOTOR” in the “BASE TRUCK MECHANICS” section).

Using the screwdrivers extract the radial o-ring from it's seat (fig.1) and proceed with its replacement.

In the assembly stage apply a uniform layer of "SHELL ALVANIA R3" grease over the o-ring radial gasket.;

Before starting work, ensure that you are wearing suitable protective clothing.

Move the carriage to a safe place, away from areas of transit of other vehicles and all pedestrians. Turn the keyswitch to OFF and disconnect the battery.

Remove the rubber mat at the operator's feet inside the cab. Using the T-handle hex key, unscrew and remove the screws securing the cover of the electronic controls. Unscrew and remove the screw locking the bonnet, remove the electronic controls cover and open the bonnet (fig.1).

Using the screwdriver, remove the caps protecting the contacts.

Connect a resistor that can have a value of between 33 and 100 Ohm 50W between the positive (B+) and negative (B-) of the module (fig.2).

Equipment and tools: plastic hammer, T-handle hex key 2.5 mm

Before starting work, ensure that you are wearing suitable protective clothing.

Move the truck to a safe place, away from the transit areas of other vehicles and pedestrians.

Carry out the fork carriage removal procedure (see “REMOVAL OF THE FORK CARRIAGE”).

2.5 mm T-HANDLE HEX KEY - PLASTIC HAMMER

Using the Allen wrench, unscrew and remove the screws securing the bearing to the mast assembly (ref.A fig.1). With the aid of the hammer, remove the bearing and proceed with the replacement.;

Equipment and tools: open ended spanner 2 x 28 mm

Before starting work, ensure that you are wearing suitable protective clothing.

Move the truck to a safe place, away from the transit areas of other vehicles and pedestrians.

Using the controls in the cab, make the retractable carriage come fully out (fig.1).

Turn the keyswitch to OFF and disconnect the battery.

Loosen the ring nuts fastening the sensor to the support plate (fig.3).

Equipment and tools: open ended spanner 24 mm, external circlip pliers, socket wrench for self-locking ring nut, ratchet, driving tool Ø 10 mm, hammer

Before starting work, ensure that you are wearing suitable protective clothing.

Carry out the retractable carriage removal procedure (see “REMOVAL OF THE RETRACTABLE CARRIAGE”).

Use the circlip pliers to remove the circlip securing the bearing block (ref.A fig.1). Remove the bearing and proceed with the replacement.

24 mm OPEN ENDED SPANNER - SOCKET WRENCH FOR SELF-LOCKING RING NUT - RATCHET. CLAMP GUDGEON - HAMMER
