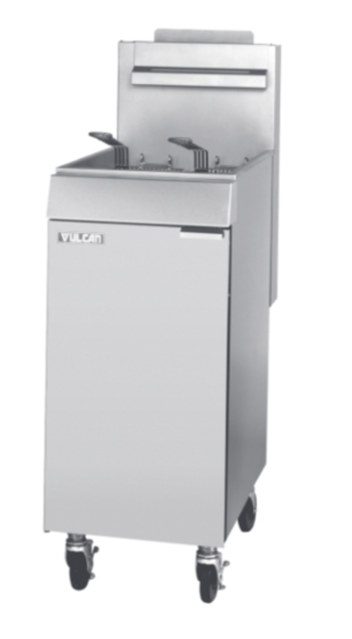

Vulcan Cooking Equipment ML-114944

Shut off the gas before servicing

Check all gas joints disturbed during servicing for leaks using soap and water solution

Remove the screw securing the Pilot/Thermopile Assembly Bracket to the tank front and lower the assembly away from the tank

Remove the pilot compression fitting at the bottom of the pilot and disconnect the pilot tubing

Remove thermopile as outlined under Thermopile and set aside for reassembly

Remove (2) screws holding the pilot assembly to the Pilot/Thermopile Assembly Bracket

Shut off the gas before servicing

Remove heat shield as outlined under Covers and Panels

Remove wire leads from high limit, noting all connections for reassembly

Remove high limit from mounting bracket

Remove left burner as outlined under Burners

Loosen the packing nut and the holding nut

Place temperature tester in the fry tank near the thermostat bulb

Set the thermostat to 300°F and allow the temperature to stabilize

Enter the temperature tester reading

Enter the thermostat dial reading

Is the variance between the tester and dial reading more than ±20°F?

Remove thermostat knob from shaft

Rotate the setscrew inside the hollow shaft to adjust temperature

Allow temperature to stabilize and recheck temperature

Light pilot as outlined under Lighting Pilot

Check if the flame extends beyond the outer edges of the pilot shield by 1/2 inch

Remove the cap covering pilot adjustment screw

Turn the recessed pilot adjustment screw counterclockwise to increase the flame size

Turn the recessed pilot adjustment screw clockwise to decrease the flame size

WARNING: SHUT OFF THE GAS BEFORE SERVICING.

Drain shortening from fry tank.

Remove heat shield as outlined under Covers and Panels.

Remove left burner as outlined under Burners.

Remove thermostat knob by pulling knob off thermostat shaft.

Remove thermostat mounting screws and remove thermostat from mounting bracket.

Remove wire leads from the rear of the thermostat, noting all connections for reassembly.

Loosen the packing nut and holding nut.

Remove the thermostat bulb from the clamp.
