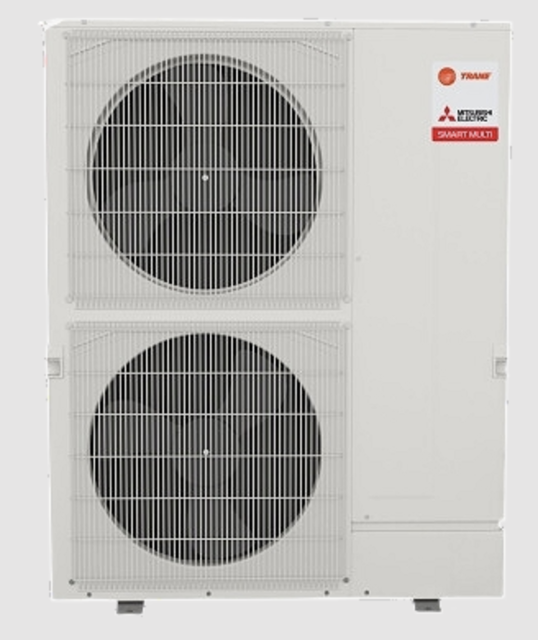

Mitsubishi HVAC Unit NTXMSH36A142AA

Need answers fast?
Explore the manual using AI.

Mitsubishi HVAC Unit NTXMSH36A142AA

View PDF Manual

Explore Maintenance Plans

Mitsubishi HVAC Unit NTXMSH36A142AA

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Mitsubishi HVAC Unit NTXMSH36A142AA

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Mitsubishi HVAC Unit NTXMSH36A142AA

Mitsubishi HVAC Unit NTXMSH36A142AA

Create an account to install this asset package.

Maintenance Plans for Mitsubishi HVAC Unit Model NTXMSH36A142AA

Integrate maintenance plans directly into your work orders in MaintainX.

Bypass Valve Coil SV1 / Bypass Valve Removal

Check mark

Panel Removal

Check mark

Remove the service panel. (See Photo 1)

Check mark

Remove the top panel. (See Photo 1)

Check mark

Remove the cover panel (front). (Refer to procedure 8(5))

Check mark

Remove the cover panel (rear). (Refer to procedure 8(6))

Check mark

Remove the side panel (R). (Refer to procedure 8 (7))

Check mark

Bypass Valve Coil Removal

Check mark

Remove the bypass valve coil fixing screw (M4 x 6).
