Mitsubishi
Mitsubishi

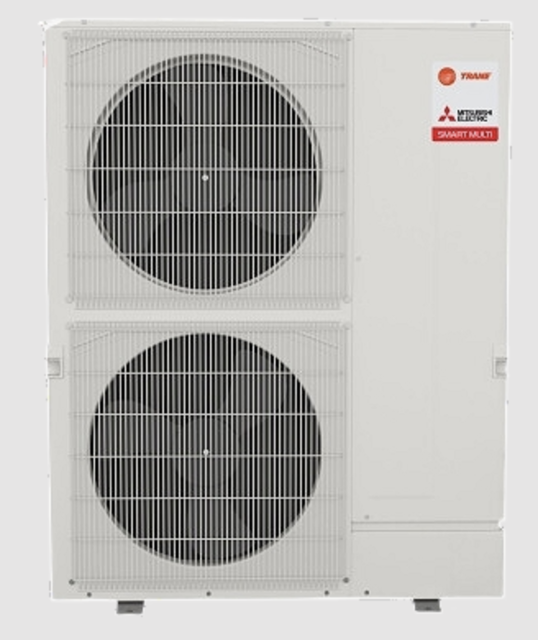

Mitsubishi HVAC Unit NTXMSH48A182AA

Need answers fast?
Explore the manual using AI.

Mitsubishi HVAC Unit NTXMSH48A182AA

View PDF Manual

Explore Maintenance Plans

Mitsubishi HVAC Unit NTXMSH48A182AA

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Mitsubishi HVAC Unit NTXMSH48A182AA

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Mitsubishi HVAC Unit NTXMSH48A182AA

Mitsubishi HVAC Unit NTXMSH48A182AA

Create an account to install this asset package.

Maintenance Plans for Mitsubishi HVAC Unit Model NTXMSH48A182AA

Integrate maintenance plans directly into your work orders in MaintainX.

Electrical Part Box Removal

Check mark

Panel Removal

Check mark

Remove the service panel. (See Photo 1)

Check mark

Remove the top panel. (See Photo 1)

Check mark

Wire and Connector Disconnection

Check mark

Disconnect the connecting wire from terminal block.

Check mark

Remove all connectors from multi controller circuit board

Check mark

Pull out the disconnected wire from the electrical parts box.

Check mark

Compressor Lead Wire Disconnection

Check mark

Remove the terminal cover using a flathead screwdriver. (See Figure 1)

Run this procedureArrow right

Compressor MC Removal

Check mark

Panel Removal

Check mark

Remove the service panel. (See Photo 1)

Check mark

Remove the top panel. (See Photo 1)

Check mark

Remove the cover panel (front). (Refer to procedure 8(5))

Check mark

Remove the cover panel (rear). (Refer to procedure 8(6))

Check mark

Remove the side panel (R). (Refer to procedure 8 (7))

Check mark

Cover and Electrical Parts Removal

Check mark

Remove 2 front cover panel fixing screws (5 x 12) and remove the cover panel (front). (See Photo 4)

Check mark

Remove the electrical parts box. (See Photo 5)

Run this procedureArrow right

Bypass Valve Coil SV1 / Bypass Valve Removal

Check mark

Panel Removal

Check mark

Remove the service panel. (See Photo 1)

Check mark

Remove the top panel. (See Photo 1)

Check mark

Remove the cover panel (front). (Refer to procedure 8(5))

Check mark

Remove the cover panel (rear). (Refer to procedure 8(6))

Check mark

Remove the side panel (R). (Refer to procedure 8(7))

Check mark

Bypass Valve Coil Removal

Check mark

Remove the bypass valve coil fixing screw (M4 x 6).

Check mark

Remove the bypass valve coil by sliding the coil upward.

Run this procedureArrow right

Low Pressure Sensor 63LS Removal

Check mark

Panel Removal

Check mark

Remove the service panel. (See Photo 1)

Check mark

Remove the top panel. (See Photo 1)

Check mark

Remove the cover panel (front). (Refer to procedure 8(5))

Check mark

Remove the cover panel (rear). (Refer to procedure 8(6))

Check mark

Remove the side panel (R). (Refer to procedure 8(7))

Check mark

Electrical Disconnection

Check mark

Disconnect the connector 63LS (blue) on the multi controller circuit board in the electrical parts box.

Check mark

Remove the electrical parts box. (See Photo 5)

Run this procedureArrow right

Reactor DCL Removal

Check mark

Panel Removal

Check mark

Remove the service panel

Check mark

Remove the top panel

Check mark

Remove the electrical parts box

Check mark

Remove 6 screws (4 x 10) for reactor to remove the reactors

Check mark

Verification and Cleanup

Check mark

Verify all components have been removed

Check mark

Clean the work area

Run this procedureArrow right
