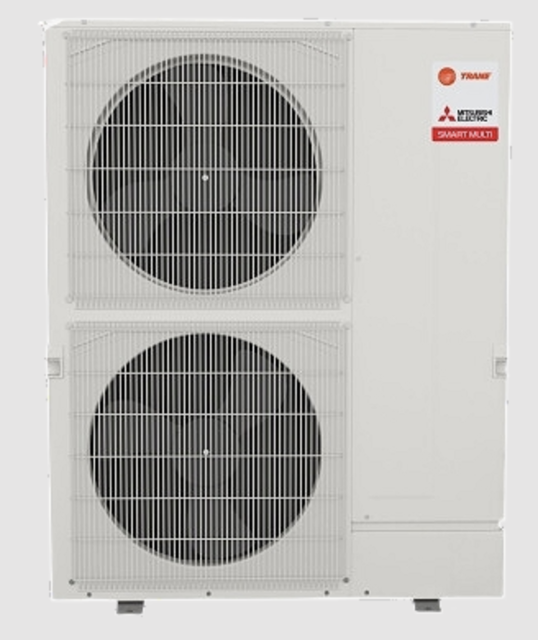

Mitsubishi HVAC Unit NTXMSM60A182AA

Mitsubishi HVAC Unit NTXMSM60A182AA

Create an account to install this asset package.

Maintenance Plans for Mitsubishi HVAC Unit Model NTXMSM60A182AA

Integrate maintenance plans directly into your work orders in MaintainX.

Electrical Part Box Removal

Check mark

Panel Removal

Check mark

Remove the service panel. (See Photo 1)

Check mark

Remove the top panel. (See Photo 1)

Check mark

Disconnect the connecting wire from terminal block. (See Photo 5)

Check mark

Remove all the following connectors from outdoor multi controller circuit board

Check mark

Pull out the disconnected wire from the electrical parts box.

Check mark

Compressor Lead Wire Disconnection

Check mark

Remove the terminal cover using a blade of flathead screwdriver.

Check mark

Disconnect the compressor lead wire.

Run this procedureArrow right

Reactor DCL Removal

Check mark

Panel Removal

Check mark

Remove the service panel

Check mark

Remove the top panel

Check mark

Remove the electrical parts box

Check mark

Remove 6 screws (4 x 10) for reactors to remove the reactors

Check mark

Verification and Cleanup

Check mark

Verify all components have been removed

Check mark

Clean the work area

Run this procedureArrow right

Thermistor Outdoor Liquid Pipe TH3 / Thermistor Compressor TH4/ Thermistor Hic Pipe TH2 Removal

Check mark

Panel and Connector Removal

Check mark

Remove the service panel

Check mark

Disconnect the connectors on the multi controller circuit board

Check mark

Thermistor Removal

Check mark

Pull out the thermistors from the sensor holder

Run this procedureArrow right

Accumulator Removal

Check mark

Panel Removal

Check mark

Remove the service panel. (See Photo 1)

Check mark

Remove the top panel. (See Photo 1)

Check mark

Remove the electrical parts box. (See Photo 5)

Check mark

Remove the valve bed. (See procedure 8 (4))

Check mark

Remove the cover panel (front). (Refer to procedure 8(5))

Check mark

Remove the cover panel (rear) (Refer to procedure 8(6))

Check mark

Remove the side panel (R). (Refer to procedure 8 (7))

Check mark

Refrigerant Recovery

Run this procedureArrow right

Thermistor Suction Pipe TH6 Removal

Check mark

Panel Removal

Check mark

Remove the service panel. (See Photo 1)

Check mark

Remove the top panel. (See Photo 1)

Check mark

Electrical Disconnection

Check mark

Disconnect the connectors, TH7/6 (red), on the multi controller circuit board in the electrical parts box.

Check mark

Loosen the wire clamps on the back of electrical parts box.

Check mark

Thermistor Removal

Check mark

Pull out the thermistor <Suction pipe> (TH6) from the sensor holder. (See Photo 7)

Check mark

Is the thermistor <Ambient> (TH7) being replaced together with thermistor <Suction pipe> (TH6)?

Run this procedureArrow right
