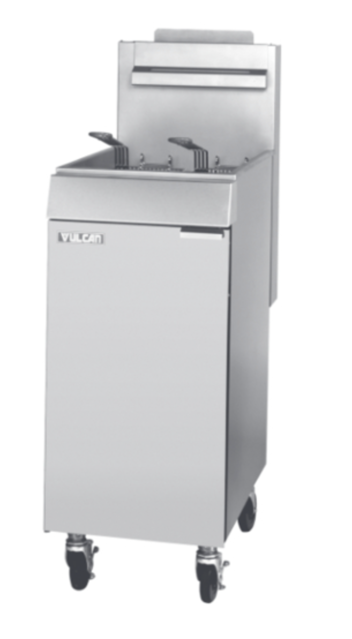

Vulcan Cooking Equipment ML-114943

WARNING: SHUT OFF THE GAS BEFORE SERVICING.

Drain shortening from fry tank.

Remove heat shield as outlined under Covers and Panels.

Remove left burner as outlined under Burners.

Remove thermostat knob by pulling knob off thermostat shaft.

Remove thermostat mounting screws and remove thermostat from mounting bracket.

Remove wire leads from the rear of the thermostat, noting all connections for reassembly.

Loosen the packing nut and holding nut.

Remove the thermostat bulb from the clamp.

Shut off the gas before servicing

Turn the gas control valve knob to OFF

Remove the plug from the submanifold and install pressure gauge

Turn on the gas and light the pilot

Turn the gas control valve knob to ON

Set the thermostat so the burners will come on

WARNING: SHUT OFF THE GAS BEFORE SERVICING

Remove heat shield as outlined under Cover and Panels

Loosen the two mounting bolts at the top of each burner

Push burner up while pulling the bottom of the burner forward to clear the burner nozzle

Reverse the procedure to install

Check that all tools are accounted for

Verify gas is turned back on after installation

Inspect for gas leaks after installation

Light pilot as outlined under Lighting Pilot

Check if the flame extends beyond the outer edges of the pilot shield by 1/2 inch

Remove the cap covering pilot adjustment screw

Turn the recessed pilot adjustment screw counterclockwise to increase the flame size

Turn the recessed pilot adjustment screw clockwise to decrease the flame size

Verify the flame size after adjustment

Shut off the gas before servicing

Check all gas joints disturbed during servicing for leaks using soap and water solution (bubbles). Do not use an open flame.

Disconnect fryer from main gas supply

Remove heat shield as outlined under Covers and Panels

Remove screws holding fryer tank (Figure 17)
