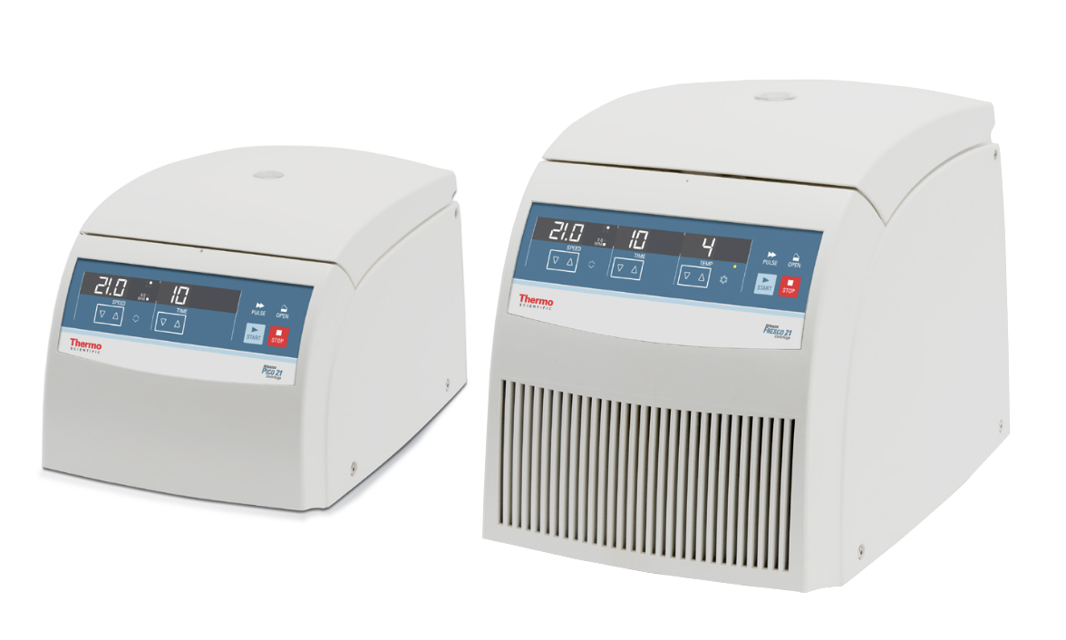

ThermoFisher Scientific Centrifuge Pico 21

Inspect the seals and seal surfaces for signs of wear and damage

Are all seals and seal surfaces free from damage?

Is the rotor lid properly closed?

Are the sample vessels filled and closed correctly?

Describe any issues found during the inspection

Has the centrifuge reached its 13-year lifetime limit?

Decommission the centrifuge if the lifetime limit is reached.

Rotor, Buckets, and Lids Inspection

Enter the number of cycles for each rotor.

Is the number of cycles within the specified limit for each rotor?

Replace rotors, buckets, and lids if they exceed the specified cycle limit.

Check for damage or wear on accessories

Press the large seal in the outer groove of the rotor body (top detail)

Press the small seal into the groove of the rotor collar (bottom detail)

Ensure that the rotor lid closes securely

Check if the rotor lid is damaged or dulled

Replace the rotor lid if it is damaged or dulled

Did you use the supplied grease for lubrication?

Fill the cavities with approx. 10 ml of carbonated mineral water

Close the rotor as explained in the handling instructions

Shake the rotor vigorously using your hands

Did you avoid applying pressure to the lid while shaking?

Ensure the level of disinfection is achieved according to requirements

Rinse the centrifuge and all affected accessories with water

Allow the centrifuge and accessories to fully drain and dry

Treat the entire surface of aluminum parts including the cavities with corrosion protection oil (70009824) after disinfecting

Ensure no one is put at risk in case of contamination

Verify that the disinfection agent or method will not damage the equipment

Contact the manufacturer of the disinfection agent if in doubt
