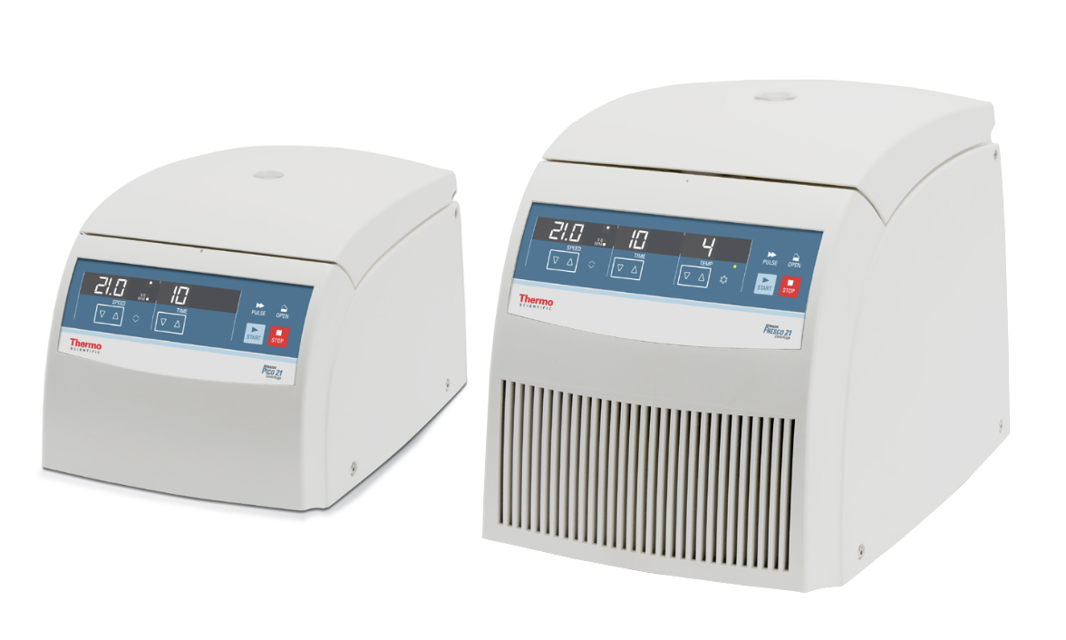

ThermoFisher Scientific Centrifuge 75002421

Pull the centrifuge to the edge of the table

Pull the clip below the sucking grid

Remove the filter unit completely by pulling it down

Remove the cumulated dust with a soft cloth

Ensure the labeling 'Front' is facing the front of the centrifuge when inserting the filter

Has the centrifuge reached its 13-year lifetime limit?

Decommission the centrifuge if the lifetime limit is reached.

Rotor, Buckets, and Lids Inspection

Enter the number of cycles for each rotor.

Is the number of cycles within the specified limit for each rotor?

Replace rotors, buckets, and lids if they exceed the specified cycle limit.

Check for damage or wear on accessories

Seal Preparation and Installation

Press the large seal in the outer groove of the rotor body (top detail)

Press the small seal into the groove of the rotor collar (bottom detail)

Ensure that the rotor lid closes securely

Check if the rotor lid is damaged or dulled

Replace the rotor lid if it is damaged or dulled

Ensure decontamination level is achieved according to requirements

Rinse the centrifuge and all affected accessories with water

Treat the entire surface of aluminum parts including the cavities with corrosion protection oil (70009824)

Ensure no one is at risk during decontamination

Verify that the decontamination method will not damage the equipment

Contact manufacturer if in doubt about decontamination agent

Ensure the level of disinfection is achieved according to requirements

Rinse the centrifuge and all affected accessories with water

Allow the centrifuge and accessories to fully drain and dry

Treat the entire surface of aluminum parts including the cavities with corrosion protection oil (70009824) after disinfecting

Ensure no one is put at risk in case of contamination

Verify that the disinfection agent or method will not damage the equipment

Observe the safety precautions and handling instructions for the disinfection agents used
