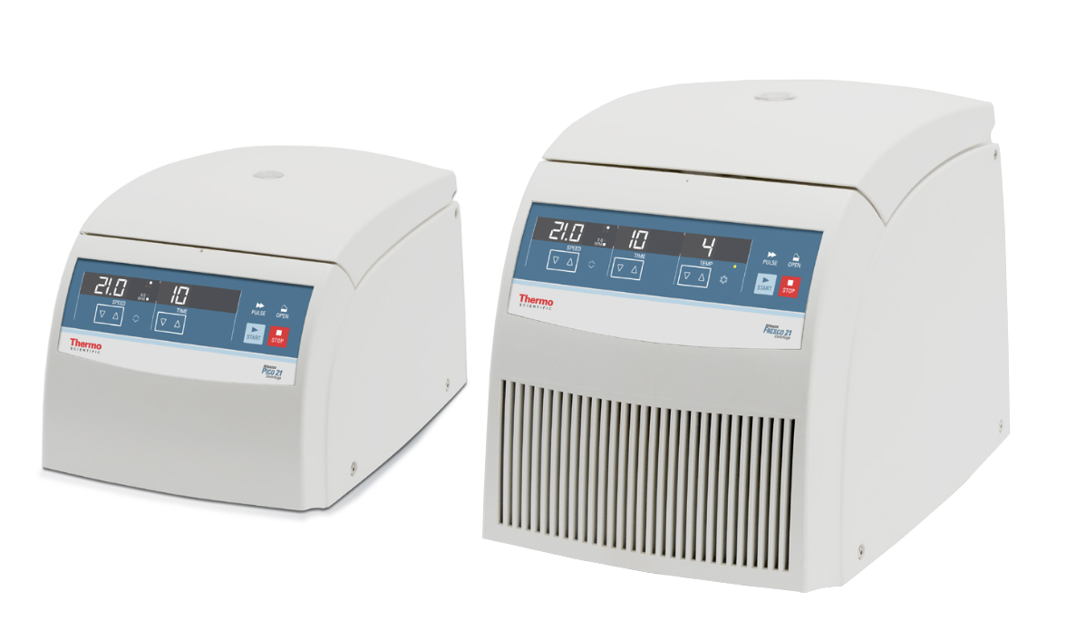

ThermoFisher Scientific Centrifuge 75002426

Ensure decontamination level is achieved according to requirements

Rinse the centrifuge and all affected accessories with water

Treat the entire surface of aluminum parts including the cavities with corrosion protection oil (70009824)

Ensure no one is at risk during decontamination

Verify that the decontamination agent or method will not damage the equipment

Contact manufacturer if in doubt about decontamination agent

Press the large seal in the outer groove of the rotor body (top detail)

Press the small seal into the groove of the rotor collar (bottom detail)

Ensure that the rotor lid closes securely

Is the rotor lid damaged or dulled?

Use the supplied grease for lubrication

Fill the cavities with approx. 10 ml of carbonated mineral water

Close the rotor as per handling instructions

Shake the rotor vigorously by hand without applying pressure to the lid

Check for leaks by observing escaping water or gas sound

Replace seals if any leaks are detected and repeat the test

Ensure all parts are ready for cleaning

Separate rotor, buckets, lids, tubes, and sealing rings for thorough cleaning

Rinse rotor and all accessories with warm water and neutral detergent

Use a soft brush without metal bristles to remove stubborn residue

Rinse rotor and all accessories with distilled water

Place rotors on a plastic grate with cavities pointing down to drain and dry

Pull the centrifuge to the edge of the table

Pull the clip below the sucking grid

Remove the filter unit completely by pulling it down

Remove the cumulated dust with a soft cloth

Ensure the labeling 'Front' shows to the front of the centrifuge when inserting the filter
