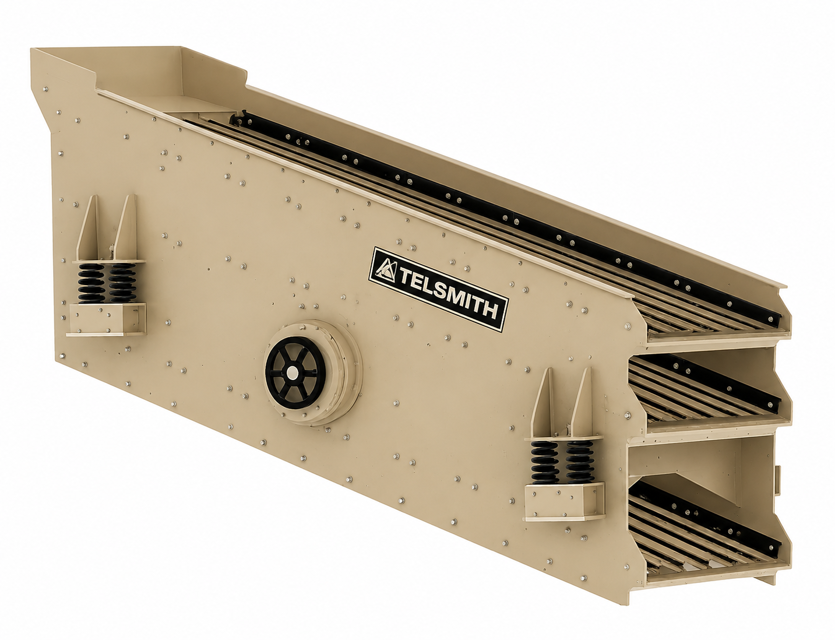

Telsmith Vibrating Aggregate Screen 8 x 24 Single Deck

Create an account to install this asset package.

Maintenance Plans for Telsmith Vibrating Aggregate Screen Model 8 x 24 Single Deck

Integrate maintenance plans directly into your work orders in MaintainX.

HD Panel Support Frame Replacement

Preparation and Safety

Ensure cross bracing is provided if all support frames and drive units are removed.

Removal of Backplate and Discharge Lip

Support the backplate with a hoist and lift straps.

Remove the capscrews holding the backplate to the support frame.

Lower the backplate to the ground.

Support the discharge lip with straps and a hoist.

Remove the six capscrews and locknuts holding the discharge lip assembly.

Lower the discharge lip assembly to the ground.

Run this procedure

Wire Support Frame Replacement

Preparation

Ensure cross bracing is provided if all support frames and drive unit/shaft casings are removed.

Determine screen model and removal sequence

Removal of Existing Wire Support Frame

Remove all cross braces from the bottom side of the screen frame.

Support the back plate with a hoist and lift straps, then remove capscrews and lower the back plate to the ground.

Support the discharge lip with straps and a hoist, remove capscrews and locknuts, and lower the discharge lip assembly to the ground.

Support the wire frame from above with lift straps at all four corners attached to a hoist.

Cut the huck bolts holding the wire frame to the vibrating frame side walls at the four corners and temporarily replace them with bolts, nuts, and washers.

Run this procedure

Vibrating Aggregate Screen Cross Brace Replacement

Preparation

Review Figure 8-55 for brace pattern

Identify brace types to be replaced

Brace Removal

Clamp the brace being removed to the mounting tabs at both ends using a C-clamp

Hold the hex nuts from below

Remove all 3/4” capscrews holding the brace to the support frame

Support the cross brace

Remove the C-clamps from one end at a time while lowering the brace

Run this procedure

1 Daily Vibrating Aggregate Screen Maintenance

Oil Level Check

Check oil level at both sight gauges

Is the oil level low?

Add additional oil through the oil manifold breather pipe if needed

Daily Start-Up

Check oil level at petcocks on each side of vibrating unit

Add oil as needed

Inspect breathers for clogs and clean or replace if necessary

Check for oil leakage

Run this procedure

Vibrating Frame Spring Replacement

Preparation

Lockout/Tagout power to screen as detailed in Chapter 1.

Remove the drive belt(s) from the electric motor(s) as detailed in Chapter 3.

Spring Removal

Remove the friction dampening puck from each base assembly by removing the access cover and pulling the spring and friction puck out of the base assembly.

Lift the screen several inches off the screen springs and base frame using a lift hoist and spreader frame of sufficient capacity for your model screen.

Block the screen up on blocking of sufficient capacity to support the screen.

Spring Inspection

Check the spring free height. New springs have a free height of 15.5 in. (39.4 cm).

Run this procedure
