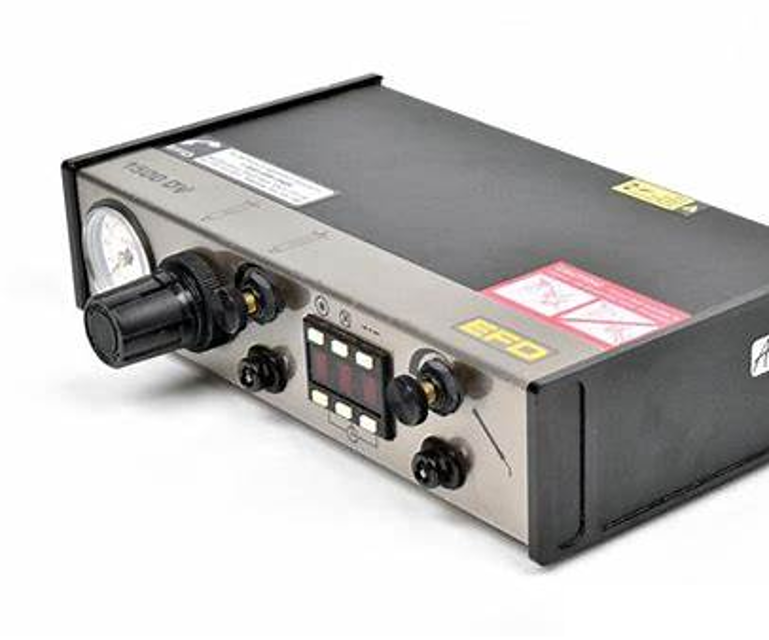

Nordson Dispenser System 1500DV-15

Need answers fast?
Explore the manual using AI.

View PDF Manual

Explore Maintenance Plans

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Nordson Dispenser System 1500DV-15

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

Nordson Dispenser System 1500DV-15

Create an account to install this asset package.

Maintenance Plans for Nordson Dispenser System Model 1500DV-15

Integrate maintenance plans directly into your work orders in MaintainX.

Dispenser System Test

Warning: Ensure power switch is off before starting the procedure

Remove the tip cap from the prefilled barrel of blue test material

Replace the tip cap with an 18 gage (green) tapered dispensing tip

Unlock the air pressure regulator knob

Adjust the air pressure to 30 psi (2.1 bar)

Lock the air pressure regulator knob

Turn on the dispenser

Set the digital time to 0.25 seconds

Ensure barrel vacuum control is turned off

Run this procedure

Initial Dispenser System Check

Unpack and use the checklist enclosed with the Dispenser Kit to identify all items.

Any discrepancy in the items?

Power and compressed plant air should be available where the dispenser is to be set up.

Air pressure reading

If you are not using an EFD five-micron filter regulator #2000F755, be certain your plant air is properly filtered and dry and a regulated, constant air pressure is supplied to the dispenser.

Using EFD five-micron filter regulator #2000F755?

Model 15000XL-CA is supplied with an EFD five-micron filter regulator with coalescing filter (#2000F756).

Using Model 15000XL-CA?

Bottled nitrogen can be used.

Run this procedure
