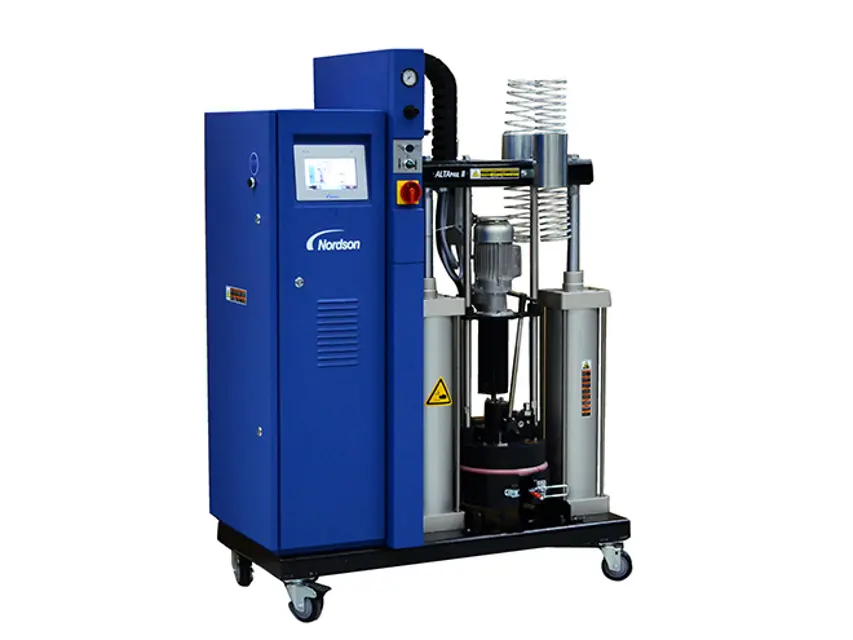

Nordson Bulk Melter 7407664

WARNING: Risk of electrical shock. Failure to observe may result in personal injury, death, or equipment damage.

You must purchase Service kit P/N: 394734. You will need the following tools: Electrical cabinet key, Open-end or box wrench, size 7

WARNING: Disconnect the bulk melter from the line voltage.

Set the main switch to 0/OFF and Open electrical cabinet door.

Unplug bus cable from old control panel.

Release the M4 hexagon nuts and remove with the tooth lock washers.

Press old control panel and old seal forwards and out of the electrical cabinet door.

Insert the new control panel and secure it using the tooth lock washers.

Plug bus cable into new control panel and then close the electrical cabinet door.

Depending on dust accumulation, the air filters in the fan and for the air outlet must be cleaned (knocked out) or replaced.

Refer to separate document Parts for filter order numbers.

Sign off on the daily fan and air filter maintenance

Warning: This maintenance check requires trained personnel with PPE!

Re-tighten the following components with a torque wrench while the material is still soft (approx. 70 ° C/158 ° F, depending on the material)

Re-tighten the following components crosswise

Sign off on the melter maintenance

Check melting plate for charred material, clean if necessary

Check base plate for material residue or other impurities, clean if necessary;

WARNING!: When damaged parts endanger the operating safety and/or the safety of personnel, switch off the bulk melter and have the damaged parts replaced by qualified personnel. Use only original Nordson spare parts.

Sign off on the daily melter inspection
