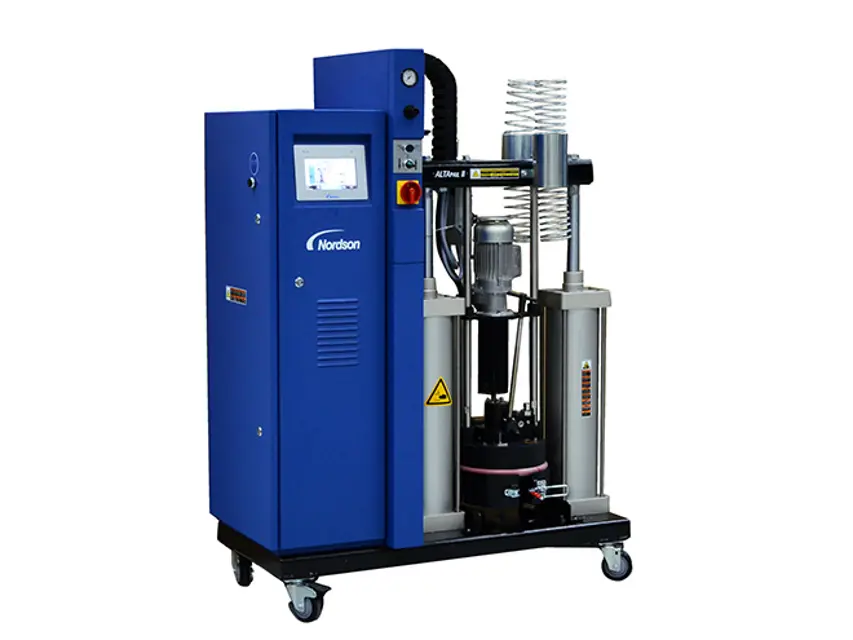

Nordson Bulk Melter AltaPail II

WARNING: Risk of electrical shock. Failure to observe may result in personal injury, death, or equipment damage.

Enter the Service kit P/N purchased

WARNING: Disconnect the bulk melter from the line voltage.

Main switch set to 0/OFF and electrical cabinet door opened

Bus cable unplugged from old control panel

M4 hexagon nuts and tooth lock washers removed

Old control panel and old seal pressed forwards and out of the electrical cabinet door

New control panel inserted and secured using the tooth lock washers

Warning: Only trained personnel should perform this procedure

Use only the stated lubricant or one that has proven to be equivalent

Using any other lubricant can result in premature wear and/or damage to the gear box

Properly dispose of the old lubricant according to local regulations

Remove gear box from the motor to change lubricant

Wash out casing with suitable cleaning agent and remove lubricant residue

Lubricant Changing Interval: Every 15000 hours of operation or at least every 2 to 3 years

Capacity: The lubricant quantity is indicated on the ID plate

Warning: This maintenance check requires trained personnel with PPE!

Re-tighten the following components with a torque wrench while the material is still soft (approx. 70 ° C/158 ° F, depending on the material)

Re-tighten the following components with a torque wrench crosswise

Sign off on the melter maintenance

Depending on dust accumulation, the air filters in the fan and for the air outlet must be cleaned (knocked out) or replaced.

Refer to separate document Parts for filter order numbers.

Sign off on the daily fan and air filter maintenance

Check melting plate for charred material, clean if necessary

Check base plate for material residue or other impurities, clean if necessary;
