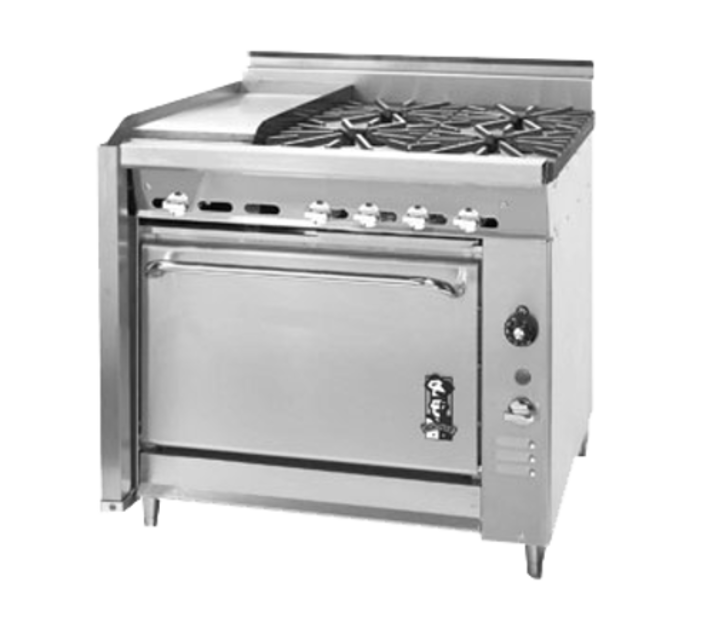

Montague Commercial Ranges C36-1-1R

Remove the briquettes or radiants

Lift the rear of the burner and slide it to the rear and off the orifice

Clean the burners in hot soapy water with a stiff scrubbing brush

Rinse the burners and shake them well to remove the water

Clear ports of debris if necessary

Remove the oven bottom assembly

Remove the two screws securing the front air shield and lift out

Slide the burner towards the rear, off the orifice fitting, and remove from oven

Clean the burner in hot soapy water with a stiff scrubbing brush

Rinse the burner and shake it well to remove the water

Open Top/Hot Top/Griddle/Broiler/Front Fired Hot Top

Disconnect the pilot gas supply pipe from the pilot burner

Clean the pilot burner by blowing through it or washing it

Reassemble the pilot burner in reverse order

Remove the oven bottom assembly (except for RC convection units)

Remove the two screws securing the front air shield and remove it from the oven

Lift and remove the open top grates

Lift and remove the burner heads

Lift the venturi housing at the rear and slide it backwards off the orifices

Clean the burner heads and venturi in hot soapy water with a stiff scrubbing brush

Rinse the burner heads and venturi and shake them well to remove the water

Are the gas ports free of debris?

Lift off the griddle or hot top plates as applicable.

Lift the rear of the burner and slide it backwards off the orifice.

Clean the burners in hot soapy water with a stiff scrubbing brush.

Rinse the burners and shake them well to remove the water.

Clear ports of debris if necessary.
