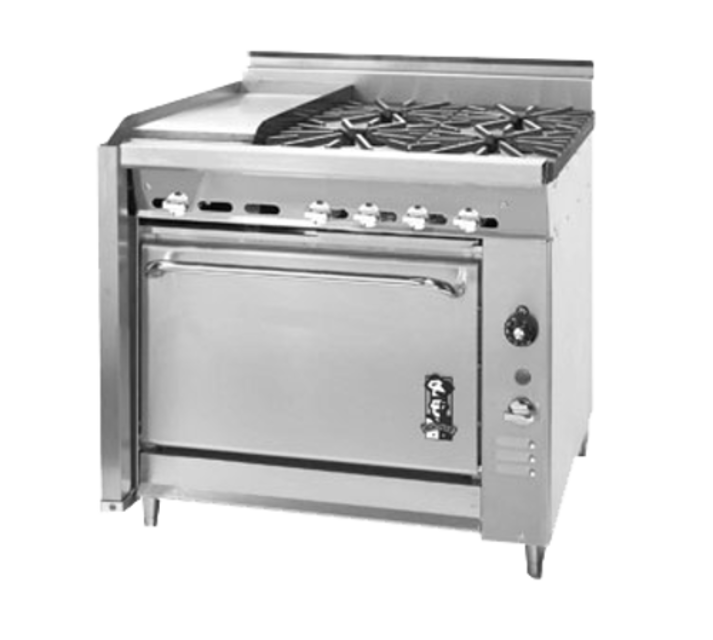

Montague Commercial Ranges C36-4-1R

Remove the right hand oven door spring

Remove the right hand front radiation shield

Slide the burner to the rear and off the orifice, then slide it to the right and remove it from the combustion chamber

Clean the burner in hot soapy water with a stiff scrubbing brush

Rinse the burners and shake them well to remove the water

Ensure griddle, open top grates, burners, hot tops, and broiler components are cool to the touch.

Clean griddle surface with a grill brick and grill pad.

Remove grease container and clean thoroughly.

Ensure no dents, scratches, or gouges are present on the griddle plate surface.

Apply a light coating of oil to the griddle surface to prevent rust.

Remove the oven bottom assembly

Remove the two screws securing the front air shield and lift out

Slide the burner towards the rear, off the orifice fitting, and remove from oven

Clean the burner in hot soapy water with a stiff scrubbing brush

Rinse the burner and shake it well to remove the water

Clear ports of debris if necessary

Lift off the griddle or hot top plates as applicable.

Lift the rear of the burner and slide it backwards off the orifice.

Clean the burners in hot soapy water with a stiff scrubbing brush.

Rinse the burners and shake them well to remove the water.

Make sure the ports are free of debris.

Clear ports of debris if necessary.

Lift and remove the open top grates

Lift and remove the burner heads

Lift the venturi housing at the rear and slide it backwards off the orifices

Clean the burner heads and venturi in hot soapy water with a stiff scrubbing brush

Rinse the burner heads and venturi and shake them well to remove the water

Are the gas ports free of debris?
