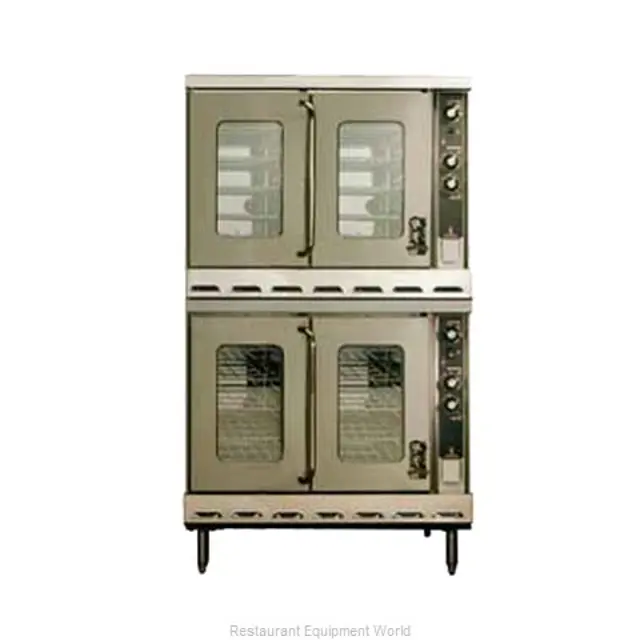

Montague Gas Convection Ovens HX-63
Create an account to install this asset package.
Maintenance Plans for Montague Gas Convection Ovens Model HX-63
Integrate maintenance plans directly into your work orders in MaintainX.
Door Adjustment
Right Hand Door Adjustment
Loosen turnbuckle '1'
Tighten turnbuckle '2'
Left Hand Door Adjustment
Loosen turnbuckle '2'
Tighten turnbuckle '1'
Note any additional adjustments made
Ensure both turnbuckles are left flat to clear front fire box panel
Oven Cleaning
Safety Precautions
Disconnect power before cleaning or servicing.
Ensure each oven section's electrical supply is disconnected.
If the unit is on casters, ensure the restraint is reconnected after moving the unit.
General Cleaning
Remove burner compartments access panel.
Clean dirt and lint from burner primary air opening and all air passages.
Clean lint and grease accumulation from motor air openings.
Exterior Cleaning
Motor and Fan Assembly
Disconnect Electrical Power to Oven(s) Before Servicing
Remove oven racks and rack guides
Remove fan baffle
Remove Motor Mount Plate bolts
Pull Motor Mount Plate forward
Remove motor and fan assembly
Remove fan from hub
Remove motor
Reinstallation and Alignment
Oven Interior Light Bulbs Replacement
Disconnect electrical power to oven before servicing
Remove oven racks and rack guides
Remove fan baffle
Unscrew the light cover from the socket
Unscrew the bulb and replace
Reassemble the oven components
Check that all parts are reassembled correctly
Test the new bulb
Clean the work area
Electrical Component Removal
Pre-removal Safety Checks
Disconnect electrical power to oven before servicing
Turn off gas supply to the oven
Access Panel Removal
Remove burner box access panel
Remove screw located under the handle at the top of the control panel
Component Removal and Testing
Remove electrical components
Test electrical components and record findings
Parts for Montague Gas Convection Ovens HX-63
Access the parts list for your equipment in MaintainX.
Motor, 1/2hp 115V 1PH 60Hz MagneTek
25881-4
Motor, 3/4hp 115V 1PH 60Hz Howell
01397-8
Motor, 3/4hp 208/240V 1PH 60Hz Howell
06371-1
Cord, Electrical 6' Power
01409-5
Block, Power Terminal - 2 Pole
25878-4
Motor, 1/2hp 115V 1PH 60Hz MagneTek
25881-4
Motor, 3/4hp 115V 1PH 60Hz Howell
01397-8
Motor, 3/4hp 208/240V 1PH 60Hz Howell
06371-1
Cord, Electrical 6' Power
01409-5
Block, Power Terminal - 2 Pole
25878-4
Motor, 1/2hp 115V 1PH 60Hz MagneTek
25881-4
Motor, 3/4hp 115V 1PH 60Hz Howell
01397-8
Motor, 3/4hp 208/240V 1PH 60Hz Howell
06371-1
Cord, Electrical 6' Power
01409-5
Block, Power Terminal - 2 Pole
25878-4
