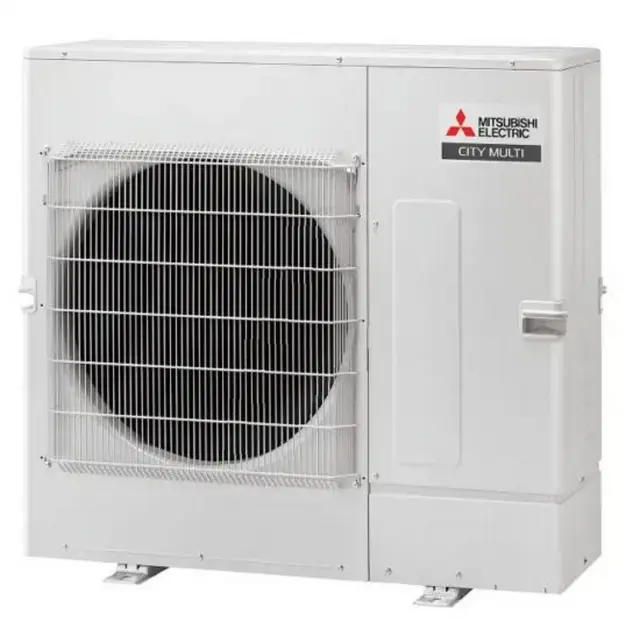

Mitsubishi Split-Type Air Conditioner PUY-A30NHA7
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Mitsubishi Split-Type Air Conditioner PUY-A30NHA7
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Mitsubishi Split-Type Air Conditioner PUY-A30NHA7
Create an account to install this asset package.
Maintenance Plans for Mitsubishi Split-Type Air Conditioner Model PUY-A30NHA7
Integrate maintenance plans directly into your work orders in MaintainX.
Outdoor Unit Electrical Parts Box Replacement
Upload a photo of the service panel before removal
Service panel removed successfully
Upload a photo of the top panel before removal
Top panel removed successfully
Indoor/outdoor connecting wire disconnected from terminal block
Connector CNF1, LEV-A and LEV-B disconnected from the controller circuit board
Disconnect the pipe-side connections of the following parts
Terminal cover removed and compressor lead wire disconnected
Electrical parts box fixing screw removed and electrical parts box detached
Outdoor Unit Reactor Replacement
Remove the service panel
Upload a photo of the removed service panel
Remove the top panel
Upload a photo of the removed top panel
Remove the electrical parts box
Upload a photo of the removed electrical parts box
Remove the reactor fixing screws
Number of screws removed
Sign off on the reactor replacement
Outdoor Unit TH7 Thermistor Replacement
Remove the service panel
Upload a photo of the removed service panel
Remove the top panel
Upload a photo of the removed top panel
Disconnect the connector TH7/6 (red) on the controller circuit board in the electrical parts box
Loosen the clamp for the lead wire in the rear of the electrical parts box
Upload a photo of the loosened clamp for the lead wire
Pull out the thermistor <Ambient> (TH7) from the sensor holder
Note: When replacing thermistor <Ambient> (TH7), replace it together with thermistor <2-phase pipe> (TH6), since they are combined together
Outdoor Unit TH32 Thermistor Replacement
Remove the service panel
Disconnect the connectors TH32 (black) on the controller circuit board in the electrical parts box
Disconnect the lead wires from the wire clip on the outdoor controller board in the electrical parts box
Loosen the clamp for the lead wire in the electrical parts box
Pull out the thermistor <Suction> (TH32) from the sensor holder
Upload a photo of the replaced thermistor
Sign off on the thermistor replacement
Outdoor Unit Compressor Replacement
Remove the service panel
Upload a photo of the removed service panel
Remove the top panel
Upload a photo of the removed top panel
Remove 2 front cover panel fixing screws (5 × 12) and remove the front cover panel
Upload a photo of the removed front cover panel
Remove 2 back cover panel fixing screws (5 × 12) and remove the back cover panel
Remove the electrical parts box
Upload a photo of the removed electrical parts box
Parts for Mitsubishi Split-Type Air Conditioner PUY-A30NHA7
Access the parts list for your equipment in MaintainX.
Inverter Starter Type, Hermetic Compressor - 1,2 KW
SNB172FWHM1
Inverter Starter Type, Hermetic Compressor - 1,2 KW
SNB172FWHM1
Inverter Starter Type, Hermetic Compressor - 1,2 KW
SNB172FWHM1
