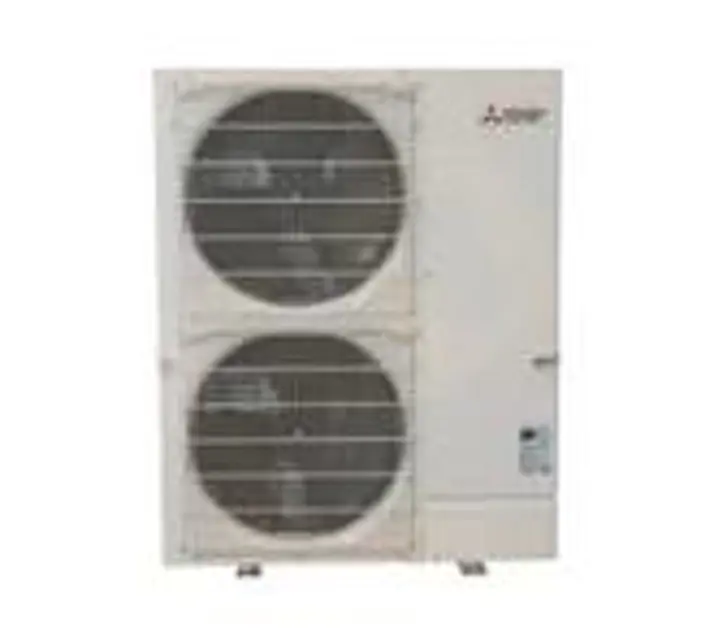

Mitsubishi Split-Type Air Conditioner PUZ-A36NKA7

(1) Remove the service panel. (See Photo 1)

(2) Remove the top panel. (See Photo 1)

(3) Remove the electrical parts box. (See Photo 3)

(4) Remove the reactor fixing screws (6 places, 4 × 10) and remove the reactor.

(4) Remove 2 capacitor band fixing screws (4 × 10) and remove the capacitor.

Note 1: The reactor and capacitor is attached to the rear of the electrical parts box.

Note 2: The 3 pieces of reactors to be replaced must have the same color of sticker. (Green, Orange, or Blue);

Upload a photo of the removed service panel

Upload a photo of the removed top panel

Remove 2 front cover panel fixing screws (5 × 12) and remove the front cover panel

Upload a photo of the removed front cover panel

Remove 2 back cover panel fixing screws (5 × 12) and remove the back cover panel

Remove the electrical parts box

Upload a photo of the removed electrical parts box

Upload photo 1 of the service panel and top panel

Number of right side panel fixing screws removed

Lead wire of high pressure switch pulled out

Welded part of high pressure switch removed

Note 1: Recover refrigerant without spreading it in the air.

Remove 3 service panel fixing screws (5 × 12) and slide the hook on the right downward to remove the service panel.

Remove screws (3 for front, 3 for rear/5 × 12) of the top panel and remove it.

Remove 4 grille fixing screws (5 × 12) from each grille and remove it.

Pull down the ice guard and remove it.

Remove a nut (for right handed screw of M6) to detach the propeller.

Upload a photo of the machine after the procedure

Refrigerant recovered from the unit completely

Refrigerant not released in the air

Cycle charged with specified amount of refrigerant after service

Filter drier installed for new refrigerant

Cylinder for R410A is a syphon type

Charging performed with the cylinder of syphon stood vertically
