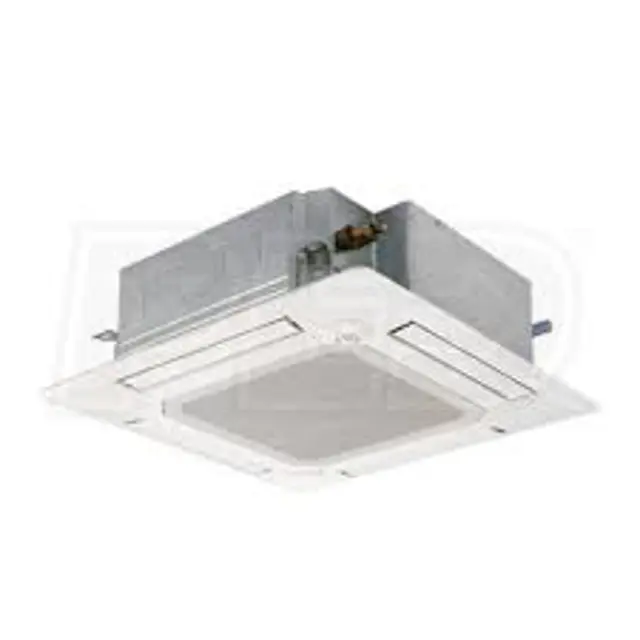

Mitsubishi Split-Type Air Conditioner PLA-A24BA4
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Mitsubishi Split-Type Air Conditioner PLA-A24BA4
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Mitsubishi Split-Type Air Conditioner PLA-A24BA4
Create an account to install this asset package.
Maintenance Plans for Mitsubishi Split-Type Air Conditioner Model PLA-A24BA4
Integrate maintenance plans directly into your work orders in MaintainX.
Drain Pump And Float Switch Replacement
Remove the drain pan
Upload a photo of the removed drain pan
Cut the hose band and remove the hose
Upload a photo of the removed hose
Remove the drain pump assembly (3 screws and 2 hooks)
Upload a photo of the removed drain pump assembly
Remove the drain pump (3 screws)
Upload a photo of the removed drain pump
Remove the float switch (2 screws)
Panel Replacement
Warning: Ensure the machine is powered off before starting the procedure
Upload a photo of the air intake grille and the filter before removal
Air intake grille and filter removed successfully
Upload a photo of the disconnected connector CNV (White/ 20P)
Connector CNV (White/ 20P) disconnected successfully
Upload a photo of the removed corner screw
Corner screw removed successfully
Upload a photo of the removed corner panel
Corner panel removed successfully
Air Intake Grille Replacement
Slide the knob of air intake grille toward the arrow 1 to open the air intake grille
Remove drop prevention hook from the panel
Slide the shaft in the hinge to the direction of the arrow 2 and remove the air intake grille
TH1 Thermistor Replacement
Step 1: Remove the air intake grille and the filter
Upload a photo of the removed air intake grille and filter
Step 2: Remove the 2 screws from the electrical box
Upload a photo of the electrical box without screws
Step 3: Disconnect the connector CN20 (Red) from the indoor controller board
Upload a photo of the disconnected connector CN20
Step 4: Remove the room temperature thermistor and holder
Upload a photo of the removed thermistor and holder
Sign off on the thermistor replacement
TH2 And TH5 Thermistors Replacement
Drain pan removed
Upload a photo of the removed drain pan
Turbo fan removed
Upload a photo of the removed turbo fan
2 wiring clamps removed
Upload a photo of the removed wiring clamps
Coil plate removed
Upload a photo of the removed coil plate
Thermistors removed from the holders
