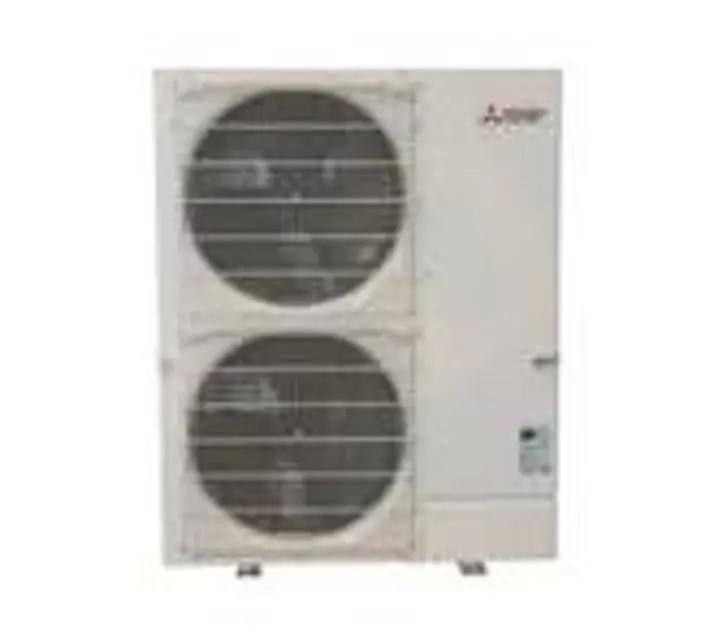

Mitsubishi Split-Type Air Conditioner PUZ-A42NKA7

Remove 5 fan grille fixing screws (5 × 12) to detach the front panel and the fan grille together

Remove a nut (for right handed screw of M6) to detach the propeller

Disconnect the connectors, CNF1, CNF2 (white) on the controller circuit board in electrical parts box

Remove 4 fan motor fixing screws (5 × 25) to detach the fan motor

When attaching the fan motor, make sure to route the cable through the hook below the fan motor and fix firmly with the clamp

Upload a photo of the completed task

Sign off on the fan motor replacement

Disconnect the connectors on the controller circuit board

Loosen the clamp for the lead wire in the rear of the electrical parts box

Pull out the thermistors from the sensor holder

Sign off on the thermistor replacement

Warning: This procedure requires trained personnel with PPE!

Remove 3 service panel fixing screws (5 × 12) and slide the hook on the right downward to remove the service panel.

Upload a photo of the removed service panel

Remove screws (3 for front, 3 for rear/5 × 12) of the top panel and remove it.

Upload a photo of the removed top panel

Remove 4 grille fixing screws (5 × 12) from each grille and remove it.

Upload a photo of the removed grille

Pull down the ice guard and remove it.

Upload a photo of the removed ice guard

(1) Remove the service panel. (See Photo 1)

(2) Remove the top panel. (See Photo 1)

(3) Remove the electrical parts box. (See Photo 3)

(4) Remove the reactor fixing screws (6 places, 4 × 10) and remove the reactor.

(4) Remove 2 capacitor band fixing screws (4 × 10) and remove the capacitor.

Note 1: The reactor and capacitor is attached to the rear of the electrical parts box.

Note 2: The 3 pieces of reactors to be replaced must have the same color of sticker. (Green, Orange, or Blue);

Upload a photo of the removed service panel

Upload a photo of the removed top panel

Disconnect the connector TH7 (red) on the controller circuit board in the electrical parts box

Loosen the clamp for the lead wire in the rear of the electrical parts box

Upload a photo of the loosened clamp for the lead wire

Pull out the thermistor <Ambient> (TH7) from the sensor holder

Note: In case of replacing thermistor <Ambient> (TH7), replace it together with thermistor <2-phase pipe> (TH6), since they are combined together.
