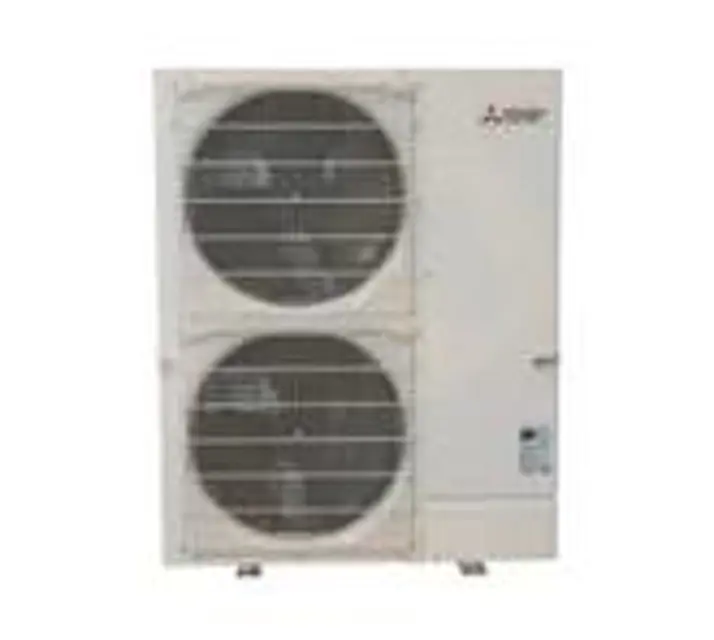

Mitsubishi Split-Type Air Conditioner PUZ-A36NKA7-BS
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Mitsubishi Split-Type Air Conditioner PUZ-A36NKA7-BS
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Mitsubishi Split-Type Air Conditioner PUZ-A36NKA7-BS
Create an account to install this asset package.
Maintenance Plans for Mitsubishi Split-Type Air Conditioner Model PUZ-A36NKA7-BS
Integrate maintenance plans directly into your work orders in MaintainX.
Outdoor Unit 4-Way Valve Replacement
Warning: This procedure requires trained personnel with PPE!
Service panel removed
Upload a photo of the removed service panel
Top panel removed
Upload a photo of the removed top panel
Valve bed fixing screws, ball valve and stop valve fixing screws removed
Right side panel removed
Upload a photo of the removed right side panel
4-way valve coil removed
Outdoor Unit Power Receiver Replacement
Remove the service panel
Upload a photo of the removed service panel
Remove the top panel
Upload a photo of the removed top panel
Remove 2 front cover panel fixing screws (5 × 12) and remove the front cover panel
Upload a photo of the removed front cover panel
Remove 2 back cover panel fixing screws (5 × 12) and remove the back cover panel
Remove the electrical parts box
Upload a photo of the removed electrical parts box
Outdoor Unit Compressor Replacement
Remove the service panel
Upload a photo of the removed service panel
Remove the top panel
Upload a photo of the removed top panel
Remove 1 front cover panel fixing screws (5 × 12) and remove the front cover panel
Upload a photo of the removed front cover panel
Remove 4 back cover panel fixing screws (5 × 12) and remove the back cover panel
Remove the electrical parts box
Upload a photo of the removed electrical parts box
Outdoor Unit TH7 Thermistor Replacement
Remove the service panel
Upload a photo of the removed service panel
Remove the top panel
Upload a photo of the removed top panel
Disconnect the connector TH7 (red) on the controller circuit board in the electrical parts box
Loosen the clamp for the lead wire in the rear of the electrical parts box
Upload a photo of the loosened clamp for the lead wire
Pull out the thermistor <Ambient> (TH7) from the sensor holder
Note: In case of replacing thermistor <Ambient> (TH7), replace it together with thermistor <2-phase pipe> (TH6), since they are combined together.
Outdoor Unit Reactor And Capacitor Replacement
(1) Remove the service panel. (See Photo 1)
(2) Remove the top panel. (See Photo 1)
(3) Remove the electrical parts box. (See Photo 3)
<Removing the reactor>
(4) Remove the reactor fixing screws (6 places, 4 × 10) and remove the reactor.
<Removing the capacitor>
(4) Remove 2 capacitor band fixing screws (4 × 10) and remove the capacitor.
Note 1: The reactor and capacitor is attached to the rear of the electrical parts box.
Note 2: The 3 pieces of reactors to be replaced must have the same color of sticker. (Green, Orange, or Blue);
Parts for Mitsubishi Split-Type Air Conditioner PUZ-A36NKA7-BS
Access the parts list for your equipment in MaintainX.
Inverter Starter Type, Hermetic Compressor - 2,5 KW
MNB33FBRMC-L
Inverter Starter Type, Hermetic Compressor - 2,5 KW
MNB33FBRMC-L
Inverter Starter Type, Hermetic Compressor - 2,5 KW
MNB33FBRMC-L
