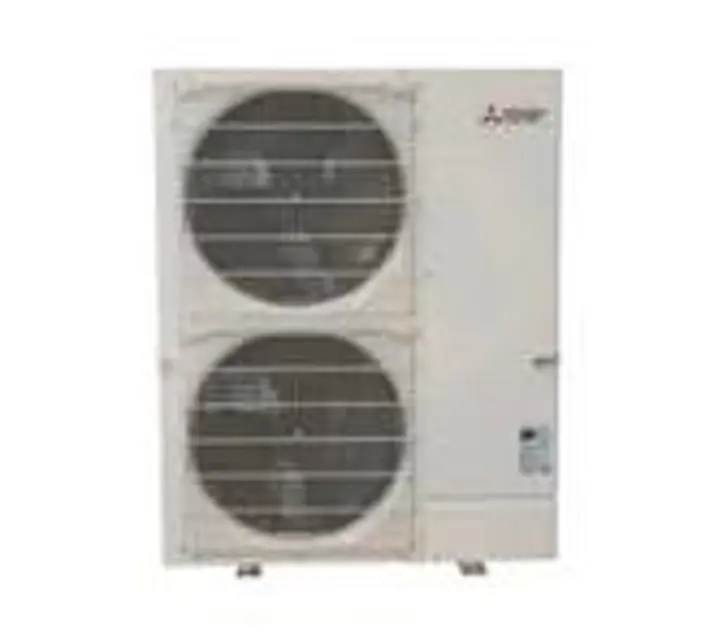

Mitsubishi Split-Type Air Conditioner PUY-A42NKA7
Create an account to install this asset package.
Maintenance Plans for Mitsubishi Split-Type Air Conditioner Model PUY-A42NKA7
Integrate maintenance plans directly into your work orders in MaintainX.
Outdoor Unit Power Receiver Replacement
Upload Photo 1
Service panel removed
Top panel removed
Number of front cover panel fixing screws removed
Front cover panel removed
Number of back cover panel fixing screws removed
Back cover panel removed
Electrical parts box removed
Number of valve bed fixing screws removed
Outdoor Unit Compressor Replacement
Upload Photo 1
Remove the service panel
Remove the top panel
Remove 1 front cover panel fixing screws (5 × 12)
Remove the front cover panel
Remove 4 back cover panel fixing screws (5 × 12)
Remove the back cover panel
Upload Photo 4
Remove the electrical parts box
Outdoor Unit Linear Expansion Valve Replacement
Upload Photo 1 of the service panel and top panel removal
Service panel removed
Top panel removed
Number of valve bed fixing screws removed
Number of ball valve and stop valve fixing screws removed
Valve bed removed
Number of right side panel fixing screws removed
Right side panel removed
Upload Photo 8 of the linear expansion valve removal
Outdoor Unit High Pressure Switch Replacement
Upload photo 1
Service panel removed
Top panel removed
Right side panel fixing screws removed
Lead wire of high pressure switch pulled out
Refrigerant recovered
Welded part of high pressure switch removed
Note 1: Recover refrigerant without spreading it in the air.
Note 2: The welded part can be removed easily by removing the right side panel.
Outdoor Unit TH3,TH4,TH33 And TH32 Thermistor Replacement
Remove the service panel
Disconnect the connectors on the controller circuit board
Loosen the clamp for the lead wire in the rear of the electrical parts box
Pull out the thermistors from the sensor holder
Sign off on the thermistor replacement
Parts for Mitsubishi Split-Type Air Conditioner PUY-A42NKA7
Access the parts list for your equipment in MaintainX.
Inverter Starter Type, Hermetic Compressor - 2,5 KW
MNB33FBRMC-L
Inverter Starter Type, Hermetic Compressor - 2,5 KW
MNB33FBRMC-L
Inverter Starter Type, Hermetic Compressor - 2,5 KW
MNB33FBRMC-L
