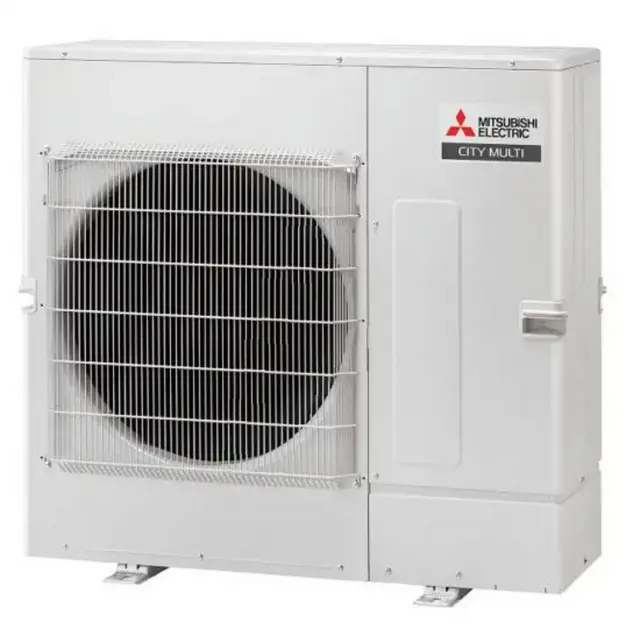

Mitsubishi Split-Type Air Conditioner PUZ-A30NHA7-BS
Create an account to install this asset package.
Maintenance Plans for Mitsubishi Split-Type Air Conditioner Model PUZ-A30NHA7-BS
Integrate maintenance plans directly into your work orders in MaintainX.
Outdoor Unit TH32 Thermistor Replacement
Remove the service panel
Disconnect the connectors TH32 (black) on the controller circuit board in the electrical parts box
Disconnect the lead wires from the wire clip on the outdoor controller board in the electrical parts box
Loosen the clamp for the lead wire in the electrical parts box
Pull out the thermistor <Suction> (TH32) from the sensor holder
Sign off on the thermistor replacement
Outdoor Unit Fan Motor Replacement
Remove the service panel
Upload a photo of the removed service panel
Remove the top panel
Upload a photo of the removed top panel
Remove 5 fan grille fixing screws (5 × 12) to detach the fan grille
Upload a photo of the detached fan grille
Remove a nut (for right handed screw of M6) to detach the propeller
Upload a photo of the detached propeller
Disconnect the connector CNF1 on controller circuit board in electrical parts box
Outdoor Unit LEV Replacement
Upload a photo of the service panel before removal
Service panel removed successfully
Upload a photo of the top panel before removal
Top panel removed successfully
Upload a photo of the electrical parts box before removal
Electrical parts box removed successfully
Valve bed fixing screws and ball valve and stop valve fixing screws removed successfully
Right side panel fixing screws removed successfully
LEV removed successfully
Outdoor Unit Electrical Parts Box Replacement
Upload a photo of the service panel before removal
Service panel removed successfully
Upload a photo of the top panel before removal
Top panel removed successfully
Indoor/outdoor connecting wire disconnected from terminal block
Connector CNF1, LEV-A and LEV-B disconnected from the controller circuit board
Disconnect the pipe-side connections of the following parts
Terminal cover removed and compressor lead wire disconnected
Electrical parts box fixing screw removed and electrical parts box detached
Outdoor Unit TH7 Thermistor Replacement
Remove the service panel
Upload a photo of the removed service panel
Remove the top panel
Upload a photo of the removed top panel
Disconnect the connector TH7/6 (red) on the controller circuit board in the electrical parts box
Loosen the clamp for the lead wire in the rear of the electrical parts box
Upload a photo of the loosened clamp for the lead wire
Pull out the thermistor <Ambient> (TH7) from the sensor holder
Note: When replacing thermistor <Ambient> (TH7), replace it together with thermistor <2-phase pipe> (TH6), since they are combined together
Parts for Mitsubishi Split-Type Air Conditioner PUZ-A30NHA7-BS
Access the parts list for your equipment in MaintainX.
Inverter Starter Type, Hermetic Compressor - 1,2 KW
SNB172FWHM1
Inverter Starter Type, Hermetic Compressor - 1,2 KW
SNB172FWHM1
Inverter Starter Type, Hermetic Compressor - 1,2 KW
SNB172FWHM1
