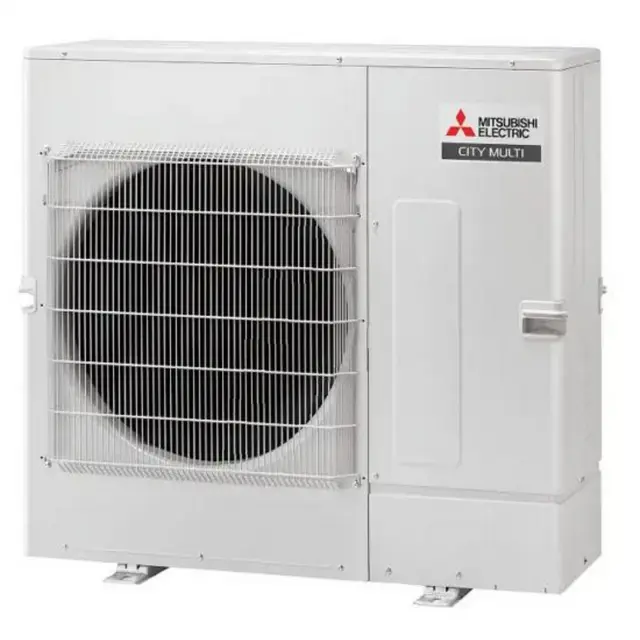

Mitsubishi Split-Type Air Conditioner PUY-A30NHA7-BS
Create an account to install this asset package.
Maintenance Plans for Mitsubishi Split-Type Air Conditioner Model PUY-A30NHA7-BS
Integrate maintenance plans directly into your work orders in MaintainX.
Outdoor Unit LEV Replacement
Upload a photo of the service panel before removal
Service panel removed successfully
Upload a photo of the top panel before removal
Top panel removed successfully
Upload a photo of the electrical parts box before removal
Electrical parts box removed successfully
Valve bed removed successfully
Right side panel removed successfully
LEV removed successfully
Outdoor Unit 4-Way Valve Replacement
Upload Photo 1 of the service panel and top panel removed
Upload Photo 4 of the electrical parts box removed
Valve bed removed after unscrewing valve bed fixing screws and ball valve and stop valve fixing screws
Right side panel removed after unscrewing right side panel fixing screws
Upload Photo 9 of the 4-way valve coil removed
Refrigerant recovered
Welded part of 4-way valve removed
Note 1: Recover refrigerant without spreading it in the air.
Note 2: The welded part can be removed easily by removing the right side panel.
Outdoor Unit TH7 Thermistor Replacement
Remove the service panel
Upload a photo of the removed service panel
Remove the top panel
Upload a photo of the removed top panel
Disconnect the connector TH7/6 (red) on the controller circuit board in the electrical parts box
Loosen the clamp for the lead wire in the rear of the electrical parts box
Upload a photo of the loosened clamp for the lead wire
Pull out the thermistor <Ambient> (TH7) from the sensor holder
Note: When replacing thermistor <Ambient> (TH7), replace it together with thermistor <2-phase pipe> (TH6), since they are combined together.
Outdoor Unit Refrigirant Charging
Cautions for service
Refrigerant recovered from the unit completely
Refrigerant not released in the air
Cycle charged with specified amount of refrigerant after service
Filter drier installed for new refrigerant
Additional refrigerant charge
Cylinder for R410A is a syphon type
Charging performed with the cylinder of syphon stood vertically
Service tools
Outdoor Unit TH32 Thermistor Replacement
Remove the service panel
Disconnect the connectors TH32 (black) on the controller circuit board in the electrical parts box
Disconnect the lead wires from the wire clip on the outdoor controller board in the electrical parts box
Loosen the clamp for the lead wire in the electrical parts box
Pull out the thermistor <Suction> (TH32) from the sensor holder
Upload a photo of the replaced thermistor
Sign off on the thermistor replacement
Parts for Mitsubishi Split-Type Air Conditioner PUY-A30NHA7-BS
Access the parts list for your equipment in MaintainX.
Inverter Starter Type, Hermetic Compressor - 1,2 KW
SNB172FWHM1
Inverter Starter Type, Hermetic Compressor - 1,2 KW
SNB172FWHM1
Inverter Starter Type, Hermetic Compressor - 1,2 KW
SNB172FWHM1
