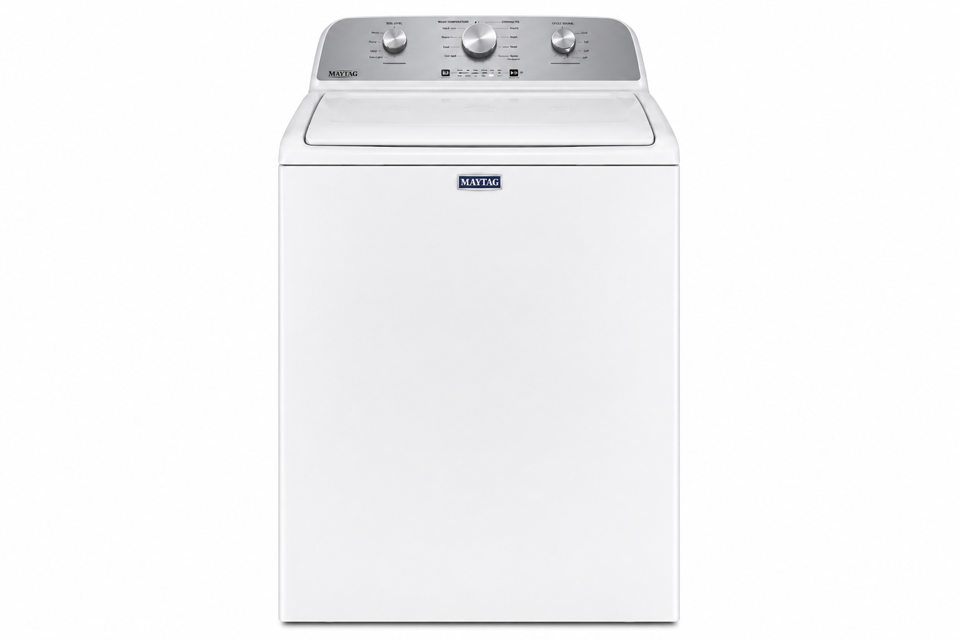

Maytag Washer PAVT244*

Disconnect the unit from the power source

Remove the transmission from the washer cabinet

Remove the cams, drive pulley, and brake assembly

Remove the three screws securing the suspension housing to the lower bearing assembly

Slip the pipe and cap assembly over the drive shaft and up against the drive tube

Use a puller with at least a 3 1/2 inch spread to remove the lower bearing assembly

Disconnect the unit from the power source

Remove all wiring from the solenoid(s) being tested

Place the test leads across the terminals of the solenoid being tested. Record the resistance reading.

Does the meter indicate continuity?

Enter the resistance reading of the solenoid

Place one test lead on one terminal of the solenoid being tested, and place the other lead on a suitable ground. Record the continuity reading.

Disconnect all wiring connections from the machine wiring harness to the motor starting switch

Read from the P to P terminals at the motor switch

Does the overload protector open repeatedly?

Troubleshooting if Overload Protector Opens Repeatedly

Ensure all necessary parts for seal replacement are available

Check if the spin bearing needs replacement

Remove the bearing and seal housing to access the tub seal

Coat the mounting recess of the housings with silicone grease (part number 203959)

Ensure no grease comes in contact with the mating surfaces of the seal

Clean both seal mating surfaces with an alcohol saturated cloth

Disconnect the unit from the power source

Remove the bearing and seal housing and the tub support

Remove the seal body from the housing cavity

Press the spin bearing out of the cavity from the opposite side of the housing

Install the replacement bearing into the housing cavity

Ensure all components are securely fastened

Check for any leftover parts or tools
