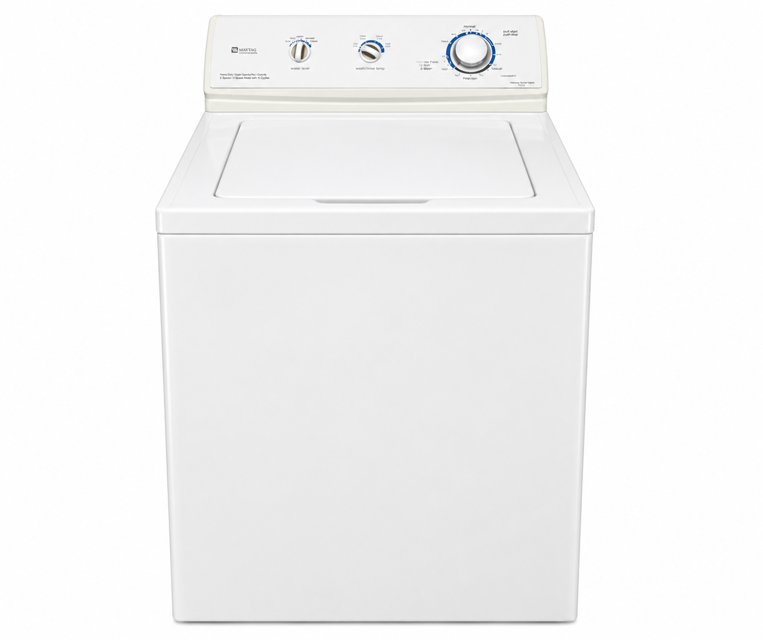

Maytag Washer DLW231*

Disconnect the unit from the power source

Remove all wiring from the solenoid(s) being tested

Place the test leads across the terminals of the solenoid being tested. Record the meter reading.

Does the meter indicate continuity?

Enter the resistance reading from the ohmmeter

Is the resistance approximately 860 ohms?

Disconnect the unit from the power source

Remove the transmission from the washer cabinet

Remove the cams, drive pulley, and brake assembly

Remove the three screws securing the suspension housing to the lower bearing assembly

Slip the pipe and cap assembly over the drive shaft and up against the drive tube

Use a puller with at least a 3 1/2 inch spread to remove the lower bearing assembly

Operate the washer in the agitation cycle with hot water for about two (2) minutes

Operate the washer in a spin cycle for about two (2) minutes

Place a 3 1/2 pound weight in the washer basket

Start the machine in the spin cycle

Did the basket reach full spin with the weight?

Describe any issues observed during the initial spin efficiency test

Disconnect the unit from the power source

Remove the bearing and seal housing and the tub support

Remove the seal body from the housing cavity

Press the spin bearing out of the cavity from the opposite side of the housing

Install the replacement bearing into the housing cavity

Press against the outer race of the bearing to avoid damage

Check that all parts are in place

Test the washer for proper operation after reassembly

Describe any issues encountered during the procedure

Disconnect the unit from the power source

Raise the top and open the clothes door

Remove the two screws securing the safety switch assembly to the underside of the top

Place test leads across the terminals at each end of switch. The switch contacts should be open, and continuity SHOULD NOT be indicated.

Leave the test leads across the terminals and depress the switch button. The switch contacts should close and continuity SHOULD be indicated.
