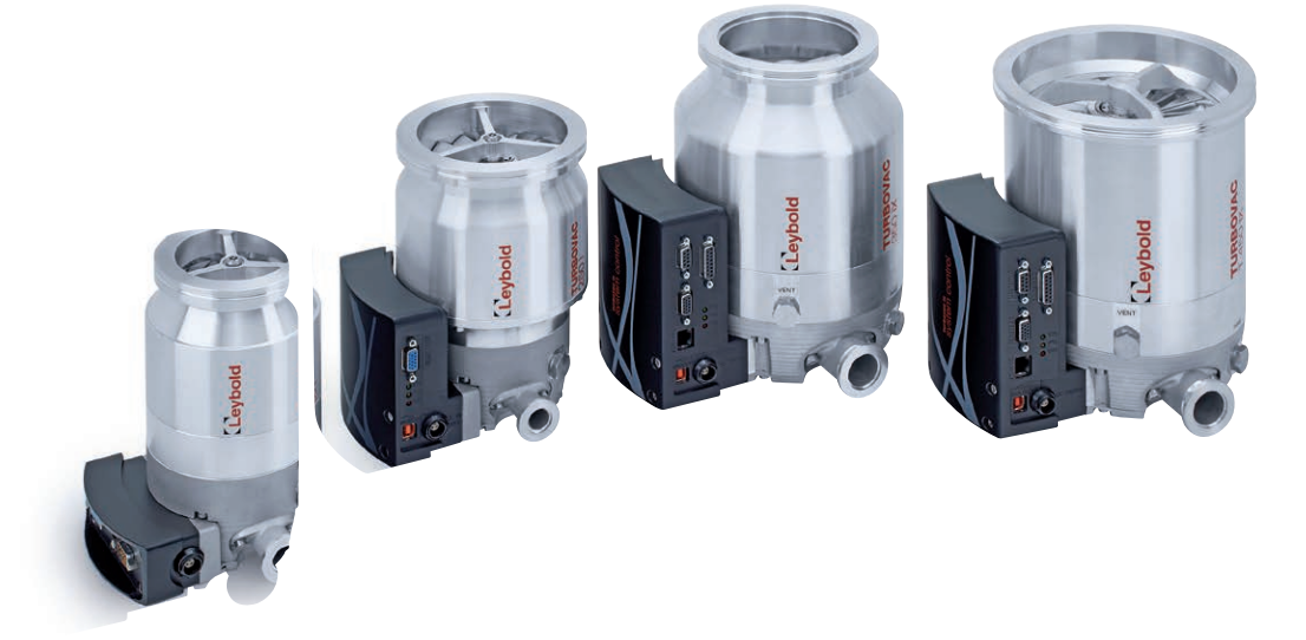

Leybold Vacuum Pump TURBOVAC T350iX DN100CF

Is the TURBOVAC equipped with a CF flange?

Enter the current pressure in mbar

Is the pressure in the range of 10-8 mbar or below?

Bake out the vacuum chamber and components installed therein

Use the flange heater to bake out the TURBOVAC

Is the rotor protected against intensive, direct heat radiation?

Enter the temperature at the forevacuum side in °C

Is the temperature at the forevacuum side below 100 °C (212 °F)?

WARNING — Observe Safety information 0.1.7

Record the current operating hours of the rotor unit

Has the rotor unit reached 80,000 operating hours?

Is the pump operating under high load conditions?

Contact Leybold Service for rotor unit exchange

Record the contact details of the Leybold service center

Consult Leybold for maintenance recommendations

Measure suspended matter concentration

Measure electrical conductivity

Check for aggressive carbon dioxide presence

Determine if bearing replacement is required

Contact after sales service for on-site bearing replacement

Request a quotation for bearing replacement at Leybold Service Center

Is the turbomolecular pump free of dust?

Clean the turbomolecular pump with a dry cloth if dust is present.

Is the converter free of grime (dust, moisture) on the inside?

Describe any grime found inside the converter.

Was the converter cleaned by the Leybold Service Department?
