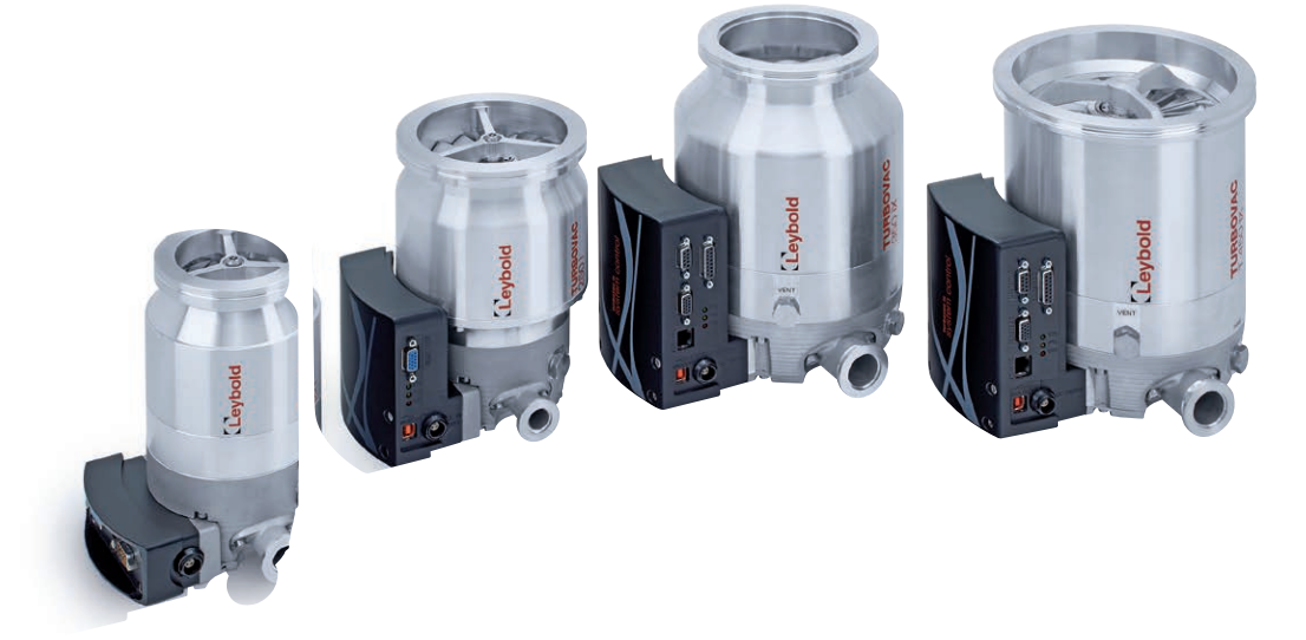

Leybold Vacuum Pump TURBOVAC T350i DN100ISO-K

Observe Safety information 0.1.7

Exchange the rotor unit after 80,000 operating hours

Contact Leybold Service for rotor unit maintenance

Find the nearest Leybold service center address on www.leybold.com

Consult Leybold for recommendations if operating under high pump loads

4.7 Removing the pump from the system

Shut down the pump and vent as described in Sections 4.4 and 4.5.

Has the pump previously handled hazardous gases?

Implement proper precautionary measures before opening the intake or exhaust connection if hazardous gases were handled.

Observe Safety Information 0.4.6.

Disconnect the pump only when it has come to a full stop.

Switch the mains power off and wait until the yellow power LED is off.

Disconnect any cable connections.

0.4 Hazards caused by materials and substances

Ensure the forevacuum line is tight

Check for potential leaks where hazardous gases can escape

Verify the pump's integral leak rate is < 1·10-8 mbar·l/s upon delivery

Conduct a leak search after installing the pump or performing service work on the vacuum system

Perform regular leak searches when pumping toxic gases

Determine if bearing replacement is required on site

Contact after sales service for on-site bearing replacement

Request a quotation for bearing replacement at the nearest Leybold Service Center

4.1 Media compatibility / purge gas
